LP3882ESX-1.5/NOPB

$2.92

Description：IC REG LINEAR 1.5V 1.5A TO263
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2b23529bdf94 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP3882ESX-1.5/NOPB is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG LINEAR 1.5V 1.5A TO263. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for LP3882ESX-1.5/NOPB

Description：IC REG LINEAR 1.5V 1.5A TO263
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：1
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.5V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.27V @ 1.5A
Current - Output：1.5A
Current - Quiescent (Iq)：30 µA
Current - Supply (Max)：8 mA
PSRR：80dB ~ 65dB (120Hz ~ 1kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount

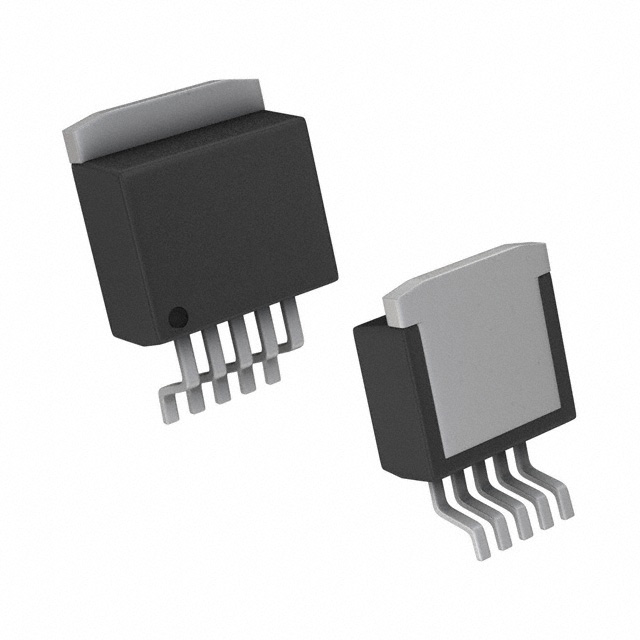

Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：TO-263 (DDPAK-5)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for LP3882ESX-1.5/NOPB

LP3882ESX-1.5/NOPB

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The LP3882ESX-1.5/NOPB is a Texas Instruments linear regulator delivering 1.5 A output current with a fixed 1.5 V voltage setting. It features an ultra-low dropout voltage of 0.17 V at full load and a typical quiescent current of 30 µA. The device operates within a junction temperature range of -40°C to +125°C and utilizes a TO-263-5 surface-mount package. Line regulation is specified at 0.01 %/V, while load regulation is 0.04 %/A.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Ultra-low dropout voltage capability for efficient power management
Fast transient response characteristics
Low ground pin current consumption
Integrated enable control feature

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Portable battery-powered equipment
Cellular phones and PDAs
Laptops and notebooks
Personal digital assistants

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix 'NOPB' indicates lead-free status and RoHS compliance as per manufacturer standards. Confirm the 'ESX' designation corresponds to the TO-263-5 package variant. Ensure the fixed 1.5 V output matches system requirements before procurement. Check moisture sensitivity level (MSL) ratings for proper storage and handling procedures during assembly.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when high efficiency is required under low input-to-output voltage differentials. The fast response makes it suitable for systems with rapid load changes. Consider the thermal performance in the TO-263-5 package for heat dissipation needs. Verify that the 1.5 A continuous current rating exceeds peak application demands.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the LP3882 family of ultra-low dropout linear regulators from Texas Instruments. These devices are designed for applications requiring minimal voltage drop between input and output. The series offers high performance with low noise and fast transient response capabilities.
