LP3943ISQX

LED Driver IC Overview

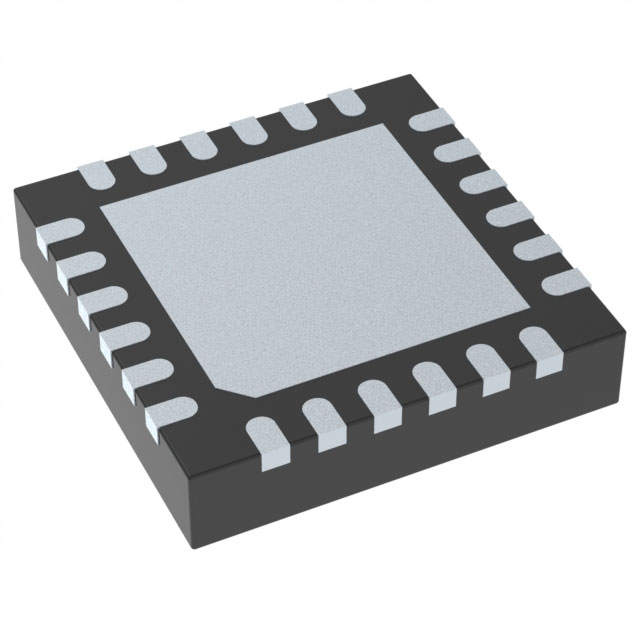

The LP3943ISQX is a Texas Instruments integrated LED lighting driver IC designed for independent control of sixteen output channels. It supports RGB and White LED configurations, featuring an internal precision oscillator for timing accuracy. The device utilizes I2C and SMBus interfaces for digital dimming control and communication. It operates with a low-level output current capability of 25 mA per channel. The component is housed in a compact 24-WQFN (4x4) package, suitable for surface-mount technology applications requiring high channel density and precise color mixing capabilities.

LED Driver IC Feature Summary

• Independent driving capability for sixteen individual LEDs
• Internal precision oscillator for stable timing operations
• Digital dimming support via I2C and SMBus interfaces

LED Driver IC Applications

• RGB and White LED lighting systems
• Fun light driver circuits
• Color mixing LED arrays

LED Driver IC Procurement Notes

Verify the specific suffix 'X' indicates reel packaging when sourcing from distributors. Confirm the manufacturer part number matches exactly to ensure compatibility with existing PCB footprints and design specifications. Check for the NOPB designation to confirm lead-free compliance status as required by project regulations.

LED Driver IC Selection Notes

Select this component for designs requiring independent control of multiple LED channels within a small form factor. Consider the 25 mA output current limit when determining load requirements. Ensure the host controller supports the necessary I2C or SMBus protocols for effective dimming and configuration management during system integration.

LED Driver IC Part Context

This part belongs to the LP3943 series of LED drivers manufactured by Texas Instruments. The series focuses on providing multi-channel solutions for complex lighting applications. The ISQX variant specifies the industrial temperature range and the specific tape-and-reel packaging format for automated assembly processes.

LED Driver IC Replacement Considerations

Consult official Texas Instruments documentation for direct pin-to-pin substitutes. Verify that any alternative component maintains identical channel counts and interface compatibility to avoid redesign efforts.
