LP5560TME/NOPB

$0.90

Description：IC LED DRV LIN SGL WR 4DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT),Bulk

SKU:603d5b029294 Category: LED Drivers IC Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP5560TME/NOPB is listed in the LED Driver IC range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC LED DRV LIN SGL WR 4DSBGA. Review the specifications below when checking this part for your BOM.

LED Driver IC specifications for LP5560TME/NOPB

Description：IC LED DRV LIN SGL WR 4DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT),Bulk
Type：Linear
Topology：-
Internal Switch(s)：Yes
Number of Outputs：1
Voltage - Supply (Min)：2.7V
Voltage - Supply (Max)：5.5V
Voltage - Output：-
Current - Output / Channel：19.5mA
Frequency：-
Dimming：Single-Wire
Applications：-
Operating Temperature：-30°C ~ 85°C (TA)
Mounting Type：Surface Mount

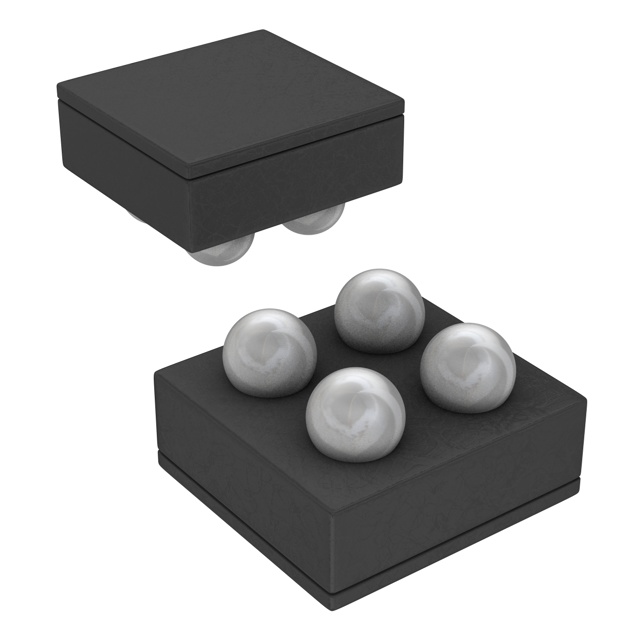

Package / Case：4-WFBGA, DSBGA
Supplier Device Package：4-DSBGA
Grade：-
Qualification：-

LED Driver IC datasheet and documents for LP5560TME/NOPB

LP5560TME/NOPB

LED Driver IC Overview

The LP5560TME/NOPB is a programmable single LED driver from Texas Instruments, designed for applications requiring simple control and compact solutions. It operates within an input voltage range of 2.7V to 5.5V and delivers a maximum output current of 19.5mA per channel. The device features synchronous rectification topology and supports linear regulation with peak efficiency up to 100%. It includes programmable ramp control capabilities and maintains low quiescent current of 0.025mA typical. The component functions reliably across an operating temperature range of -30°C to +85°C and is housed in a DSBGA-4 package.

LED Driver IC Feature Summary

Programmable single LED driver architecture enabling flexible configuration
Synchronous rectification topology for high efficiency performance
Simple single-wire control interface reducing system complexity
Integrated programmable ramp control for smooth LED transitions

LED Driver IC Applications

Single LED backlighting systems
Indicator lighting circuits
Compact portable electronic devices
Low-power illumination modules

LED Driver IC Procurement Notes

Verify the specific ordering suffix matches the required package variant. Confirm that the NOPB designation aligns with RoHS compliance requirements for your target market. Ensure the DSBGA-4 footprint corresponds to your PCB layout specifications. Cross-reference the thermal characteristics against your application's ambient conditions to guarantee reliable operation within the specified temperature range.

LED Driver IC Selection Notes

Select this component when a single-channel LED drive solution is sufficient for the design. Consider the 19.5mA output limit to ensure it meets the forward current requirements of the selected LED. Evaluate the DSBGA-4 package size constraints against available board space. Verify compatibility with the intended single-wire control protocol before finalizing the part selection.

LED Driver IC Part Context

This device belongs to the LP5560 series of programmable LED drivers. It shares functional similarities with other members like the LP5560TMX/NOPB, differing primarily in packaging or tape-and-reel configurations. The series emphasizes small solution sizes and efficient power management for single-LED applications.
