LP5891ZXLR

LED Driver IC Overview

The LP5891ZXLR is a Texas Instruments LED lighting driver IC featuring a 48x16 matrix architecture with 48 constant current sources and 16 scan FETs. It supports up to 16-bit PWM grayscale control and operates within a supply voltage range of 2.5V to 5.5V. The device provides independent VCC and VR/G/B power domains, with output currents adjustable from 0.2mA to 20mA per channel. It utilizes a high-speed Continuous Clock Series Interface (CCSI) for data transmission and includes built-in SRAM for multiplexing support.

LED Driver IC Feature Summary

• Integrates 48 constant current sinks and 16 scan switches for direct LED matrix driving
• Supports up to 16-bit PWM grayscale control with low gray enhancement capabilities
• Features CCSI interface allowing daisy-chaining of multiple devices with minimal pin count
• Includes diagnostic functions for open LED, weak short, and short circuit detection

LED Driver IC Applications

• Mini and micro LED matrix displays
• RGB LED backlights for gaming keyboards
• LED light panels with local dimming capabilities
• Broadcast and audio mixing equipment indicators

LED Driver IC Procurement Notes

Verify the specific suffix 'ZXLR' corresponds to the 96-NFBGA package and reel quantity requirements. Confirm that the application environment remains within the specified -40°C to +85°C operating temperature range. Ensure the host controller supports the required CCSI protocol timing and voltage levels for reliable communication with the device.

LED Driver IC Selection Notes

Select this component when a high-density LED matrix solution with precise grayscale control is required. It is suitable for designs needing independent color brightness adjustment and low power consumption modes. Consider stacking capabilities if larger display areas are needed beyond the single-device capacity. Verify compatibility with the system's available GPIO pins for the three-wire serial interface.

LED Driver IC Part Context

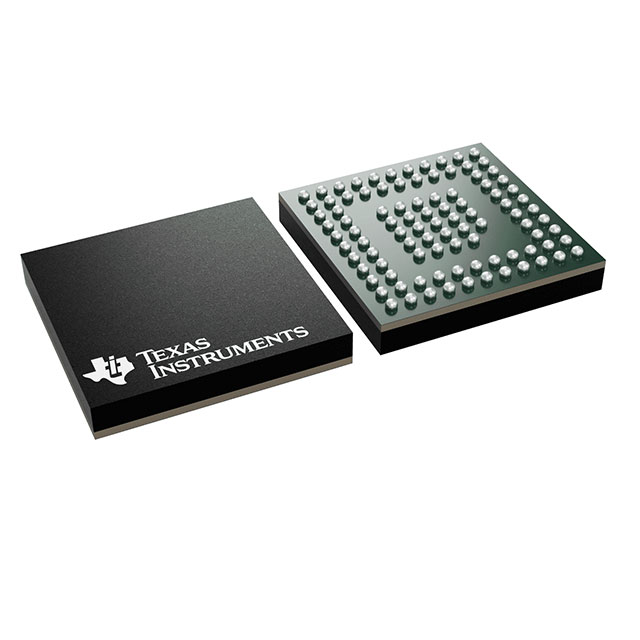

This part belongs to the LP5891 family of highly integrated LED matrix drivers designed for complex display applications. It shares functional similarities with the LP5890 but offers specific packaging and interface optimizations. The ZXLR suffix denotes the specific tape-and-reel packaging configuration in a 96-pin NFBGA footprint, distinguishing it from other variants like the RRFR.

LED Driver IC Replacement Considerations

The TLC6984ZXLR is listed as a parameter-equivalent alternative by distributors. Verify electrical compatibility and pin-to-pin correspondence before substitution. No other official substitutes are documented in the provided source material.
