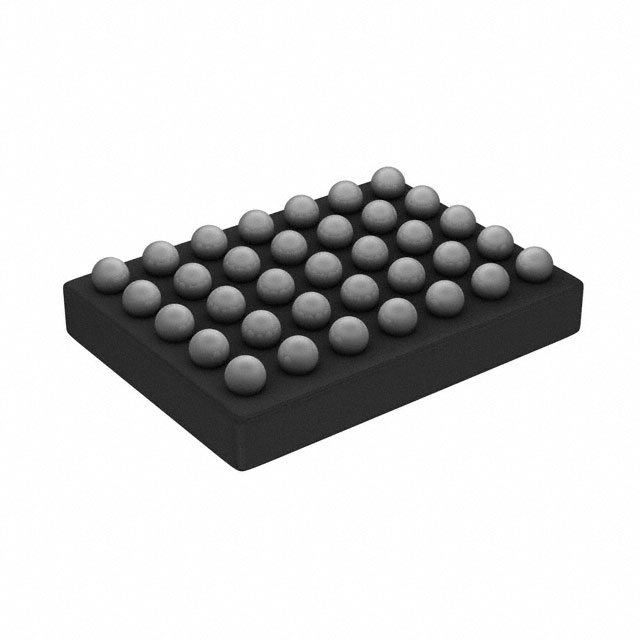

LP8758A1B0YFFR

$4.50

Description：IC REG BUCK PROG 16A 35DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b752a3161c97 Category: Voltage Regulators - DC DC Switching Regulators Brand: Texas Instruments

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP8758A1B0YFFR is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Texas Instruments. Its product description is IC REG BUCK PROG 16A 35DSBGA. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LP8758A1B0YFFR

Description：IC REG BUCK PROG 16A 35DSBGA
Series：-
Mfr：Texas Instruments
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Programmable
Number of Outputs：1
Voltage - Input (Min)：2.5V
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：0.5V
Voltage - Output (Max)：3.36V
Current - Output：16A
Frequency - Switching：3.3MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：35-UFBGA, DSBGA
Supplier Device Package：35-DSBGA (2.88x2.13)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LP8758A1B0YFFR

LP8758A1B0YFFR

Voltage Regulators - DC DC Switching Regulators Overview

The LP8758A1B0YFFR is a synchronous step-down DC-DC converter manufactured by Texas Instruments. It features four independent Buck channels, each capable of delivering up to 6 A, providing a total output current of 16 A. The device operates with an input voltage range of 2.5 V to 5.5 V and supports adjustable output voltages from 500 mV to 3.36 V. It utilizes a fixed switching frequency of 3 MHz and offers low quiescent current of 1 uA. The component is housed in a DSBGA-35 package and functions within a temperature range of -40°C to +85°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates four independent single-phase Buck converters for multi-rail power distribution
Supports high-density power delivery with up to 6 A per phase
Features ultra-low standby current consumption for battery-powered applications

Voltage Regulators - DC DC Switching Regulators Applications

Portable electronics requiring multiple voltage rails
Smartphones and mobile devices
Tablets and handheld computing devices

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix B0 against the official Texas Instruments datasheet to confirm pinout and electrical characteristics match your design requirements. Ensure the DSBGA-35 package footprint aligns with your PCB layout guidelines. Confirm RoHS compliance status through the manufacturer's documentation before finalizing procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when designing systems requiring four distinct regulated outputs with high current density. The 3 MHz switching frequency allows for smaller external passive components compared to lower-frequency alternatives. Consider thermal management strategies due to the high total output current capability of 16 A across all phases.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LP8758-B0 series of PMICs from Texas Instruments. It is designed as a compact solution for powering complex application processors and memory in portable devices. The DSBGA-35 package provides a small form factor suitable for space-constrained designs.
