LPC54S018J4MET180E

Microcontrollers Overview

The LPC54S018J4MET180E is a microcontroller based on the ARM Cortex-M4 core with an integrated Floating Point Unit (FPU). It operates at frequencies up to 180 MHz and includes 4 MB of on-chip Quad SPI Serial Flash connected via the SPIFI interface, along with 360 KB of total SRAM. The device features high-speed and full-speed USB controllers, Ethernet AVB support, LCD controller capabilities, and two CAN FD modules. Security functions include AES-256 encryption, SHA algorithms, and a Physical Unclonable Function (PUF). It provides up to 137 GPIO pins, a 12-bit ADC operating at 5.0 MSamples/sec, and multiple flexible serial communication interfaces.

Microcontrollers Feature Summary

• Integrated security engine supporting AES-256 encryption, SHA hashing, and PUF-based root key generation for secure boot and anti-rollback protection.
• High-performance ARM Cortex-M4 processor running up to 180 MHz with hardware floating-point acceleration and extensive DMA support.
• Rich peripheral set including dual CAN FD modules, Ethernet AVB MAC, and flexible serial communication interfaces configurable as USART, SPI, I2C, or I2S.
• On-chip memory architecture providing 4 MB Quad SPI Flash for execute-in-place operations and dedicated SRAM banks optimized for USB traffic.

Microcontrollers Applications

• Industrial motor drives requiring precise control and real-time diagnostics
• Building automation systems managing analog and digital inputs
• Programmable Logic Controllers (PLC) and remote I/O applications
• IoT gateways utilizing complex connectivity protocols

Microcontrollers Procurement Notes

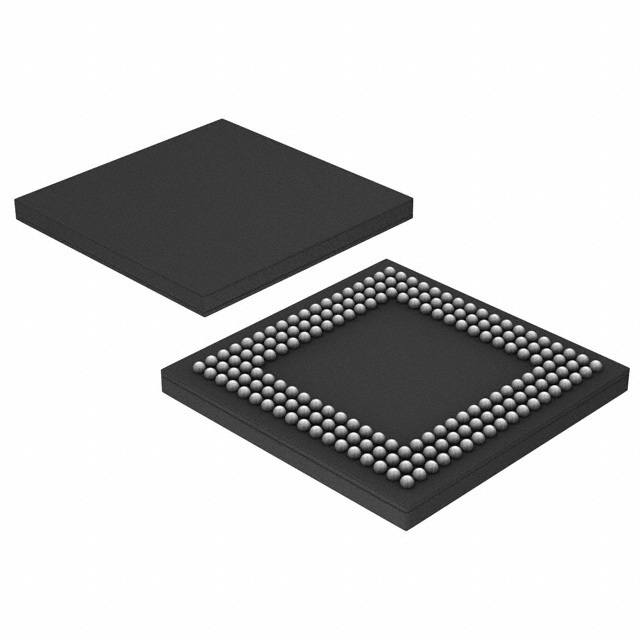

Verify the specific ordering suffix against the manufacturer's current product status table to confirm availability and package variations. Ensure the component matches the required environmental certifications such as RoHS compliance. Cross-reference the date code and revision identifier during incoming inspection to validate authenticity and traceability. Confirm that the TFBGA180 package dimensions align with the target PCB footprint design specifications.

Microcontrollers Selection Notes

Select this component when application requirements demand high processing speed combined with robust security features like PUF and encrypted boot. It is suitable for designs needing extensive connectivity through Ethernet AVB, dual CAN FD, and multiple serial interfaces. Consider this part for projects requiring significant on-chip storage for code execution without external memory dependencies. Evaluate power consumption profiles across different low-power modes if battery operation is a constraint.

Microcontrollers Part Context

This device belongs to the LPC54S018JxM family within NXP's portfolio of power-efficient microcontrollers. It shares architectural similarities with the standard LPC54018JxM but adds enhanced security peripherals including AES-256 and PUF. The family targets embedded applications requiring a balance of computational performance, rich peripheral integration, and secure data handling capabilities in industrial and consumer environments.

Microcontrollers Replacement Considerations

LPC54S018J2MET180E offers identical functionality with reduced flash capacity. LPC54018J4MET180E provides equivalent processing and connectivity but lacks the advanced security engines found in the S018 variant. Verify pin compatibility and software library support before substituting these members of the same family.

Microcontrollers FAQ

Does the LPC54S018J4MET180E support JTAG debugging?

No, the device supports JTAG boundary scan but does not support JTAG debugging. Developers must use the Serial Wire Debug (SWD) interface for debugging purposes.

What security features are unique to the LPC54S018Jx devices compared to the LPC54018Jx?

The LPC54S018Jx devices include an AES-256 encryption/decryption engine, a Physical Unclonable Function (PUF) for root key generation, and RSA API calls for secure boot authentication, which are absent in the standard LPC54018Jx models.
