LPF.12.01

Overview

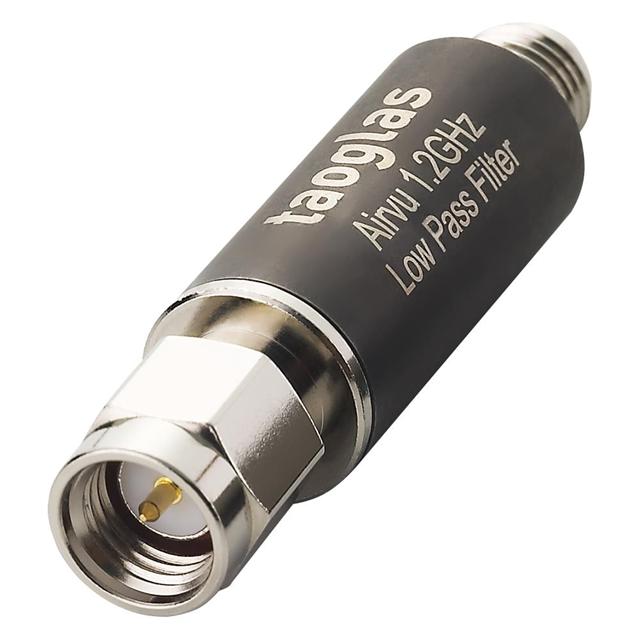

The LPF.12.01 is an Airvu series low-pass RF filter manufactured by Taoglas Limited. It operates with a frequency range of 300 MHz to 1.4 GHz and features an insertion loss of less than 1.1 dB. The component utilizes SMA male plug to SMA female jack interfaces for inline connection. Designed for robust performance, it supports frequencies up to 1.2 GHz cutoff characteristics typical of its classification.

Feature Summary

• Provides effective signal filtering within the specified low-frequency band
• Utilizes durable SMA connector interface for reliable inline integration

Applications

• RF signal conditioning in communication systems
• Low-pass filtering applications requiring SMA connectivity
• Equipment operating within the 300 MHz to 1.4 GHz spectrum

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before finalizing design integration. Confirm that the SMA male-to-female configuration aligns with the system interconnect requirements. Ensure environmental ratings meet operational standards for the intended deployment location.

Selection Notes

Select this component when a low-pass filter with SMA connectors is required for frequencies up to 1.4 GHz. Consider the insertion loss specification of less than 1.1 dB for signal integrity needs. Evaluate the physical form factor against available board or chassis space for inline installation.

Part Context

This part belongs to the Airvu product line from Taoglas Limited, focusing on radio frequency components. The LPF.12.01 serves as a specialized filter solution distinct from antenna products like the SGGP series. It addresses specific signal processing needs within the UHF and lower microwave bands.

Replacement Considerations

Consult official Taoglas documentation for direct cross-reference part numbers. Verify compatibility of SMA interface types and frequency cutoff specifications when evaluating alternative suppliers or updated revisions.
