LPF-B0R35+

Overview

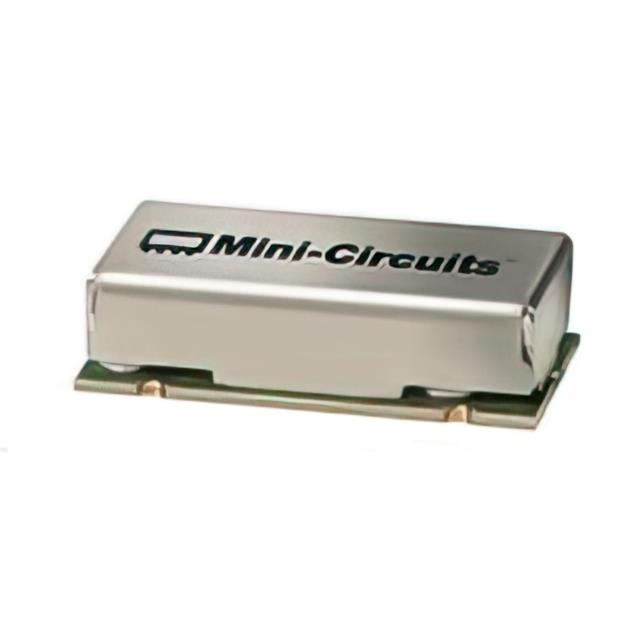

The LPF-B0R35+ is a lumped LC low-pass filter from Mini-Circuits designed for signal conditioning applications. It operates within a frequency range of DC to 0.35 MHz, providing effective filtering for low-frequency signals. The component features a 50 Ohm impedance and utilizes an SMD/SMT surface-mount package, specifically a 6-SMD, No Lead configuration. It supports board mounting and functions reliably across an operating temperature range of -40°C to +85°C. With a maximum RF power input of 0.25W, this filter is suitable for integration into compact electronic circuits requiring precise low-frequency signal management.

Feature Summary

• Utilizes lumped LC architecture for efficient low-pass filtering performance
• Designed with a compact 6-SMD, No Lead surface-mount package
• Maintains stable operation across extended industrial temperature ranges

Applications

• Low-frequency signal conditioning in electronic circuits
• Integration into compact RF and microwave systems
• Signal filtering in industrial control environments

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm exact electrical parameters and mechanical dimensions. Ensure compatibility with your PCB layout regarding the 6-SMD, No Lead package style. Confirm that the operating temperature range of -40°C to +85°C meets your environmental requirements. Validate the 50 Ohm impedance match for your system design. Always refer to official Mini-Circuits resources for the most current technical specifications and handling guidelines.

Selection Notes

Select the LPF-B0R35+ when a low-pass filter with a cutoff near 0.35 MHz is required. Its lumped LC design offers a balance of performance and size for space-constrained applications. Consider the 50 Ohm impedance standard for compatibility with common RF systems. The wide operating temperature range makes it suitable for diverse environmental conditions. Evaluate the SMD package type against your assembly capabilities and PCB design constraints.

Part Context

Mini-Circuits is a global leader in RF, IF, and microwave signal processing components. The LPF-B0R35+ belongs to their signal conditioning portfolio, specifically within the RF filters category. This product line supports various wireless communication, industrial control, and medical electronics applications. The company emphasizes high-quality control and reliable performance for its passive and active components.

FAQ

What is the maximum RF power input for the LPF-B0R35+?

The maximum RF power input is 0.25W.

Does the LPF-B0R35+ support surface mount technology?

Yes, it uses a 6-SMD, No Lead surface-mount package.
