LPF1608LKRKR0709L

Overview

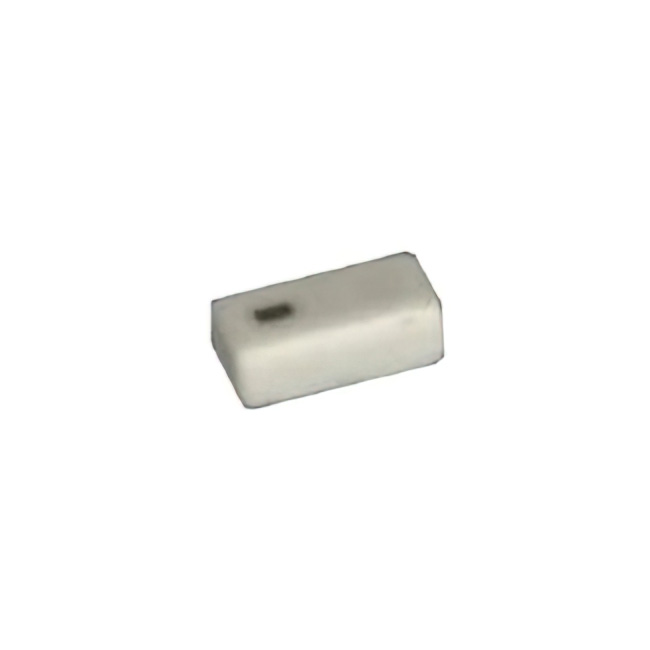

The LPF1608LKRKR0709L is a surface-mount low-pass filter manufactured by Pulse Electronics, designed for signal conditioning in RF applications. It operates within a frequency range of 617 MHz to 960 MHz and features a pass band from 698 MHz to 960 MHz. The component utilizes a 0603 (1608 metric) SMD/SMT package with board mount installation. It exhibits an insertion loss of 0.3 dB and maintains a 50 Ohm impedance. The device functions reliably across an operating temperature range of -40°C to +85°C.

Feature Summary

• Compact 0603 surface-mount footprint for space-constrained designs
• Low insertion loss for efficient signal transmission
• Wide operating temperature range suitable for harsh environments

Applications

• GSM wireless communication systems
• LTE network infrastructure
• WCDMA mobile devices

Procurement Notes

Verify the specific manufacturer documentation to confirm RoHS compliance status and moisture sensitivity level classifications before integration. Ensure that the ordering suffix matches the required packaging format, such as cut tape or reel quantities, as specified in the official datasheet. Cross-reference the part number with authorized distributors to validate current production status and availability constraints.

Selection Notes

Select this component when a compact low-pass filter is required for GSM, LTE, or WCDMA bands. The 0603 package size supports high-density PCB layouts. Verify that the 617-960 MHz operational range aligns with the target application frequencies. Confirm that the 50 Ohm impedance matches the system design requirements to ensure proper signal integrity and minimal reflection.

Part Context

This component belongs to the LPF series of RF filters produced by Pulse Electronics. It serves as a signal conditioning element within the broader category of passive electronic components. The 1608 metric designation indicates its standardized physical dimensions, facilitating compatibility with automated pick-and-place manufacturing processes commonly used in modern electronics assembly lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
