Product Detailed Parameters
- Description：RF FILTER LOW PASS 2.45GHZ 0603
- Series：1608
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：2.45GHz Center
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.48dB
- Mounting Type：Surface Mount
- Package / Case：0603 (1608 Metric), 6 PC Pad
- Size / Dimension：0.063" L x 0.032" W (1.60mm x 0.80mm)
- Height (Max)：0.032" (0.80mm)
Download product information
Overview

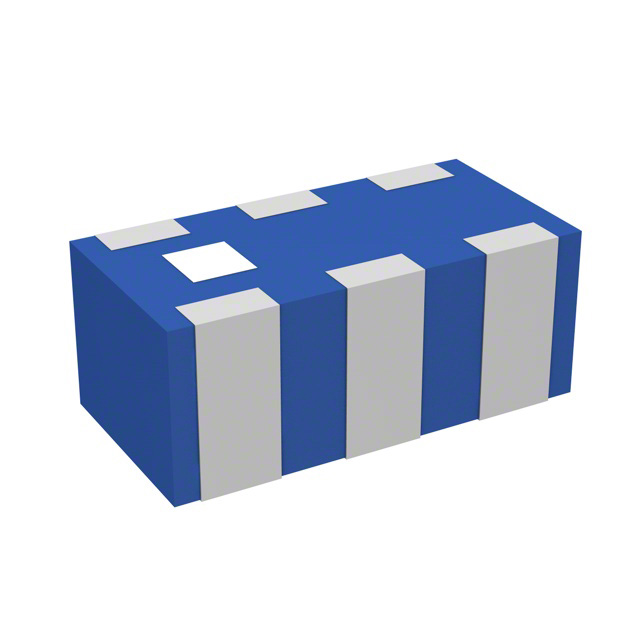

The LPF1608LL53R2400A is a surface-mount low-pass RF filter manufactured by Pulse Electronics. It operates at a center frequency of 2.45 GHz with an insertion loss of 0.48 dB. The component utilizes a 0603 (1608 metric) package, measuring 1.60 mm in length, 0.80 mm in width, and 0.80 mm in height. Designed for signal conditioning, it features a 50 Ohm impedance and supports frequencies ranging from 2.4 GHz to 2.5 GHz. The device is RoHS compliant and classified under ECCN EAR99.
Feature Summary
- Provides low-pass filtering characteristics for RF signal conditioning applications
- Utilizes a compact 0603 surface-mount package for board space efficiency
- Engineered for operation within the 2.4 GHz to 2.5 GHz frequency range
Applications
- Wireless local area network (WLAN) systems operating in the 2.4 GHz band
- Bluetooth communication devices requiring signal filtering
- Zigbee and other IEEE 802.15.4 based wireless sensor networks
Procurement Notes
Verify the specific datasheet revision and compliance documentation directly with Pulse Electronics or authorized distributors before integration. Confirm that the 0603 footprint dimensions align precisely with the printed circuit board layout. Ensure that the 50 Ohm impedance specification matches the system requirements for optimal signal transmission and minimal reflection.
Selection Notes
Select this component when a low-profile, surface-mount solution is required for 2.4 GHz band filtering. The 0.48 dB insertion loss indicates efficient signal passage within the passband. Consider the 1.60 mm x 0.80 mm physical dimensions for tight spacing constraints. Verify thermal performance capabilities against the operational environment of the target electronic assembly.
Part Context
This part belongs to the Pulse Electronics LPF series of signal conditioning components. These filters are designed for use in modern wireless infrastructure and consumer electronics. The product line emphasizes miniaturization and high-performance RF characteristics suitable for dense circuit board designs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Engineers should consult official manufacturer cross-reference guides or contact Pulse Electronics technical support for verified equivalent components.
