LPJC-592R+

Overview

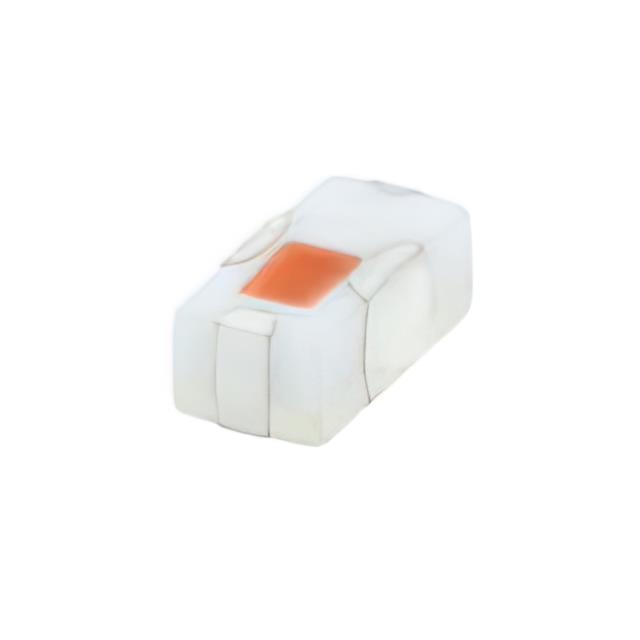

The LPJC-592R+ is a signal conditioning LTCC low pass filter designed for RF applications. It operates with a DC to 4900 MHz frequency range and features a 50 ohm impedance. The component offers a typical insertion loss of 0.4dB and provides high rejection, typically 49dB. It is housed in a miniature 0603 (1608 Metric) case size, suitable for space-constrained designs.

Feature Summary

• Utilizes LTCC technology for compact signal conditioning
• Provides high rejection performance in a miniature footprint
• Designed for 50 ohm RF systems

Applications

• RF signal conditioning
• Low pass filtering in communication systems
• Space-constrained electronic designs

Procurement Notes

Verify the specific datasheet version and test conditions associated with the LPJC-592R+ part number before integration. Confirm that the 0.4dB insertion loss and 49dB rejection metrics align with your system requirements under actual operating conditions. Ensure compatibility with the 0603 package dimensions and 50 ohm impedance specifications for proper circuit implementation.

Selection Notes

Select this component when a low profile, high-rejection low pass filter is required for frequencies up to 4900 MHz. The 0603 case size makes it appropriate for dense PCB layouts. Verify that the LTCC construction meets environmental and thermal requirements for the intended application environment.

Part Context

This component belongs to Mini-Circuits' LPJC series of LTCC low pass filters. These filters are engineered for signal conditioning tasks where minimal insertion loss and high out-of-band rejection are critical. The series utilizes thin-film LTCC technology to achieve reliable performance in a small form factor.

Replacement Considerations

Consult official Mini-Circuits documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' components without rigorous electrical validation against the original specifications.
