LPS4018-332MRC

Fixed Inductors Overview

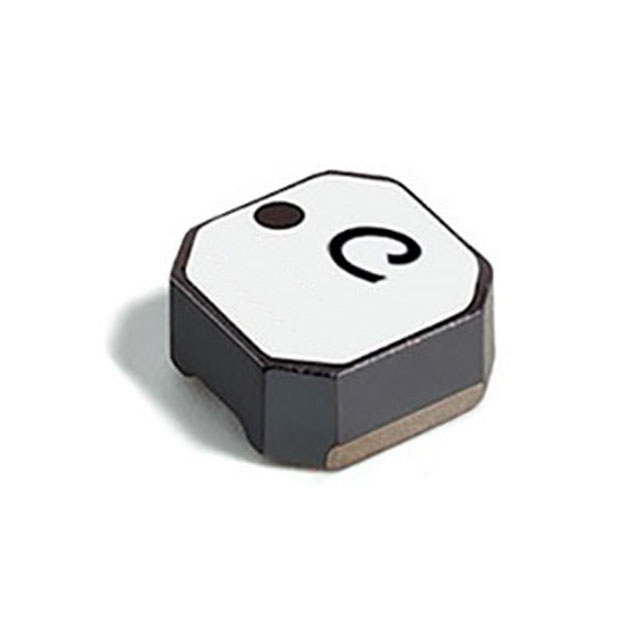

The Coilcraft LPS4018-332MRC is a shielded surface-mount power inductor from the LPS4018 series. It features a ferrite core and offers an inductance of 3.3 µH with a tolerance of ±20%. The component supports a maximum DC current of 1.4 A and a saturation current of 2 A, with a maximum DC resistance of 0.08 Ohms. It operates within a temperature range of -40°C to +125°C and has a self-resonant frequency of 75 MHz. The package dimensions are 3.9 mm x 3.9 mm x 1.8 mm.

Fixed Inductors Feature Summary

• Shielded construction minimizes magnetic interference
• AEC-Q200 qualified for automotive reliability
• High saturation current capability

Fixed Inductors Applications

• Automotive electronics
• General purpose power circuits
• DC-DC converters

Fixed Inductors Procurement Notes

Verify the specific suffix MRC against official Coilcraft documentation to confirm exact electrical tolerances and testing frequencies. Ensure compatibility with automated pick-and-place equipment due to the small surface-mount footprint. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Fixed Inductors Selection Notes

Select this component when high saturation current (2 A) is required alongside low DC resistance (0.08 Ohms). The AEC-Q200 rating makes it suitable for automotive environments requiring operation up to 125°C. Compare against other LPS4018 variants if different inductance values or current ratings better fit the circuit design requirements.

Fixed Inductors Part Context

Part of the LPS4018 series, designed for compact power applications. The series provides shielded options to reduce EMI. This specific model targets automotive and general power markets requiring robust performance in limited space.

Fixed Inductors Replacement Considerations

Check Coilcraft's official substitution guide for equivalent inductance and current ratings. Verify pinout and thermal characteristics match the original design constraints.
