LPS5015-105MRC

Fixed Inductors Overview

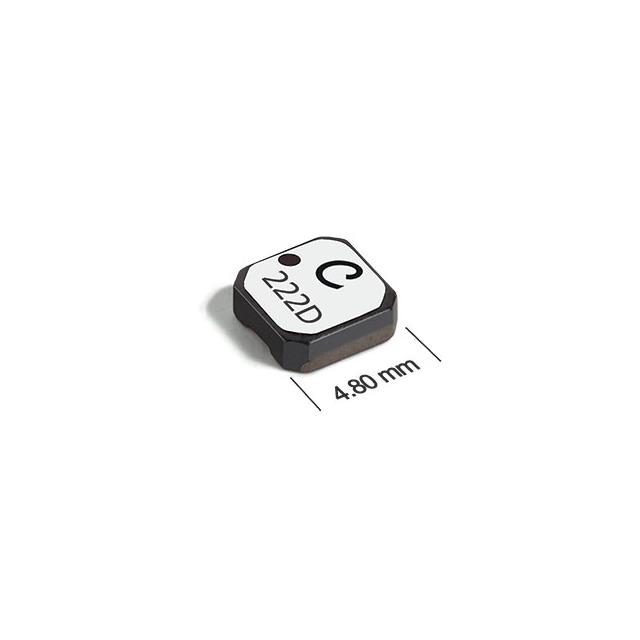

The Coilcraft LPS5015-105MRC is a shielded surface-mount power inductor from the LPS5015 series. It features a ferrite drum core and sleeve construction with a nominal inductance of 1 mH and a tolerance of ±20%. The component has a maximum DC resistance of 15 Ohms, a saturation current of 93 mA, and a maximum operating temperature of +85°C. Its compact SMD package measures 5 mm x 5 mm with a height of 1.4 mm.

Fixed Inductors Feature Summary

• Shielded magnetic design utilizing a ferrite drum core and sleeve to minimize electromagnetic interference.
• Low-profile surface-mount footprint suitable for space-constrained PCB layouts.
• RoHS compliant lead-free construction.

Fixed Inductors Applications

• Ultra-low power metering circuits
• Internet of Things (IoT) devices
• Medical equipment power supplies
• Industrial portable electronics

Fixed Inductors Procurement Notes

Verify the specific suffix 'MRC' against the manufacturer's latest datasheet to confirm exact electrical tolerances and packaging specifications. Ensure that the selected variant matches the required saturation current and DC resistance parameters for the target application circuit design.

Fixed Inductors Selection Notes

Select this component for applications requiring high inductance values within a low-profile form factor. Consider the 93 mA saturation current limit when designing power stages. Verify thermal performance at the maximum operating temperature of +85°C to ensure reliability under load conditions.

Fixed Inductors Part Context

The LPS5015 series consists of low-profile shielded power inductors designed for surface-mount technology. These components are engineered for high performance in compact electronic systems. The series offers various inductance options while maintaining consistent physical dimensions and shielding characteristics across the product line.

Fixed Inductors Replacement Considerations

Consult official Coilcraft documentation for direct cross-reference part numbers. Verify compatibility regarding pinout, physical dimensions, and electrical ratings before substituting with alternative manufacturers' components.
