LPS6225-682MRC

Fixed Inductors Overview

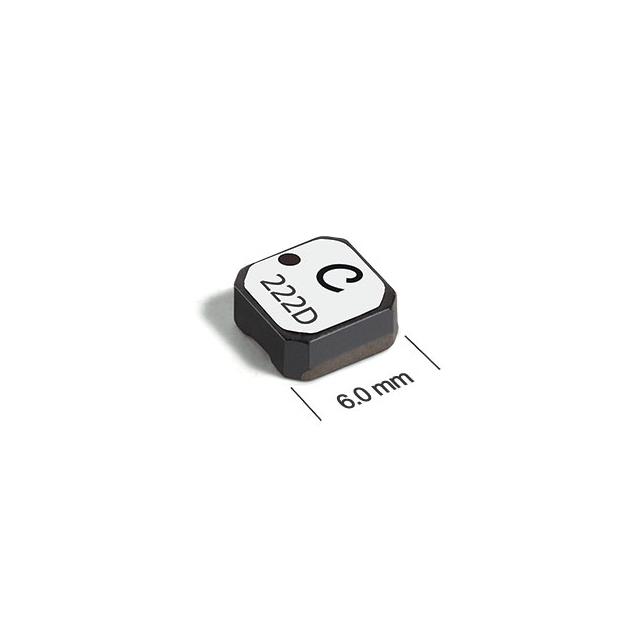

The Coilcraft LPS6225-682MRC is a shielded surface-mount power inductor from the LPS6225 series, featuring a ferrite core and drum construction. It provides an inductance of 6.8 µH with a tolerance of ±20%. The component supports a saturation current of 2.8 A and a maximum DC current of 1.3 A, with a maximum DC resistance of 95 mOhms. It operates within a temperature range of -40°C to +85°C and exhibits a self-resonant frequency of 40 MHz at a test frequency of 100 kHz. The physical dimensions are 6 mm x 6 mm x 2.4 mm.

Fixed Inductors Feature Summary

• Shielded design utilizing ferrite core material for magnetic containment
• Low-profile SMD package suitable for space-constrained applications
• Rugged construction engineered to withstand high mechanical stress

Fixed Inductors Applications

• Automotive electronics systems
• General power supply circuits
• DC-DC converter modules

Fixed Inductors Procurement Notes

Verify availability status directly with authorized distributors or the manufacturer, as supply constraints may apply. Confirm RoHS compliance and termination specifications against project requirements. Ensure storage and handling procedures align with surface-mount device standards to maintain component integrity prior to assembly.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor is required for automotive or general power applications. The 6.8 µH value and 2.8 A saturation current define its operational limits. Consider the 95 mOhms DCR for efficiency calculations. Verify that the 2.4 mm height fits within the board clearance constraints.

Fixed Inductors Part Context

This part belongs to the Coilcraft LPS6225 series, which offers low-profile shielded power inductors. The series is characterized by high performance in a small footprint, designed for surface-mount technology. The specific model utilizes a drum core configuration, distinguishing it from other core types within the broader inductor market.

Fixed Inductors Replacement Considerations

Cross-reference with LPS6225-682MRB for similar electrical characteristics but different packaging options. Verify dimensional compatibility and thermal performance before substituting. Ensure the alternative part meets the same automotive and shielding requirements.
