LPTC-V-2.55-2-75 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is CMC 2.55MH 2A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for LPTC-V-2.55-2-75
- Description：CMC 2.55MH 2A 2LN TH
- Series：LPTC-V
- Mfr：Signal Transformer
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：75mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.709" Dia x 0.512" L (18.00mm x 13.00mm)
- Height (Max)：0.669" (17.00mm)
- Package / Case：Vertical, No Base, 4 PC Pin
- Inductance @ Frequency：2.55 mH @ 1 kHz
- Impedance @ Frequency：-
Common Mode Chokes datasheet and documents for LPTC-V-2.55-2-75
Common Mode Chokes Overview

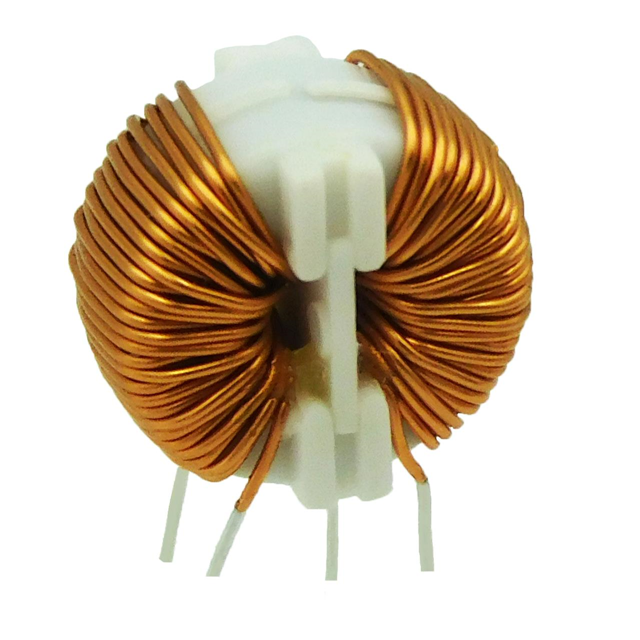

The LPTC-V-2.55-2-75 is a through-hole common mode choke manufactured by Signal Transformer, part of the Bel Group. This toroidal component features an inductance of 2.55 mH measured at 1 kHz and supports a maximum DC current of 2 A. It exhibits a maximum DC resistance of 75 mOhms and withstands voltage up to 3.75 kVrms. The device operates within a temperature range of -55°C to +125°C.
Common Mode Chokes Feature Summary
- Toroidal core construction for efficient magnetic coupling
- Through-hole mounting configuration for PCB integration
- High insulation withstand voltage capability
Common Mode Chokes Applications
- Power supply input filtering
- Battery charger circuits
- Portable electronic devices
Common Mode Chokes Procurement Notes
Verify the specific manufacturer datasheet for complete technical details before procurement. Confirm that the through-hole package dimensions match your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Check for any specific agency approvals required for your target market compliance.
Common Mode Chokes Selection Notes
Select this component when a 2.55 mH common mode choke with 2 A current rating is required. The low DC resistance minimizes power loss in high-current paths. The wide operating temperature range suits demanding environments. Verify that the through-hole form factor aligns with your assembly process constraints.
Common Mode Chokes Part Context
This component belongs to the LPTC-V series of common mode chokes from Signal Transformer. These toroidal coils are designed for applications requiring compact size and reliable performance. The series offers various inductance values to suit different filtering needs while maintaining consistent physical mounting characteristics.
Common Mode Chokes Replacement Considerations
Consult official substitution guides for verified alternatives. Ensure replacement parts match the 2.55 mH inductance, 2 A current rating, and 75 mOhm DCR specifications. Verify compatibility with through-hole mounting and -55°C to +125°C operating range.
