LPTC-V-25.5-4-130

$3.65

Description：CMC 25.5MH 4A 2LN TH
Series：LPTC-V
Mfr：Signal Transformer
Package：Tray

SKU:0b09d3bb909e Category: Common Mode Chokes Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LPTC-V-25.5-4-130 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is CMC 25.5MH 4A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for LPTC-V-25.5-4-130

Description：CMC 25.5MH 4A 2LN TH
Series：LPTC-V
Mfr：Signal Transformer
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4A
DC Resistance (DCR) (Max)：130mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-55°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.260" Dia x 0.827" L (32.00mm x 21.00mm)
Height (Max)：1.220" (31.00mm)
Package / Case：Vertical, No Base, 4 PC Pin
Inductance @ Frequency：25.5 mH @ 1 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for LPTC-V-25.5-4-130

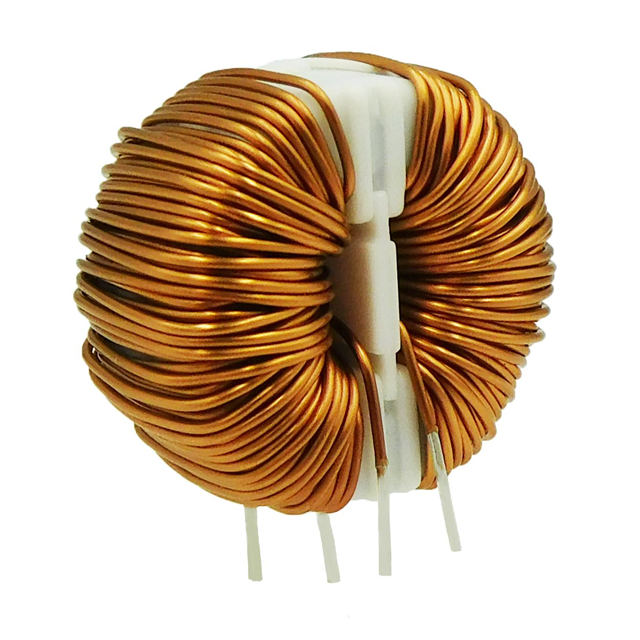

LPTC-V-25.5-4-130

Common Mode Chokes Overview

The LPTC-V-25.5-4-130 is a toroidal common mode choke manufactured by Signal Transformer. It features an inductance of 25.5 mH measured at 1 kHz and supports a maximum DC current of 4 A. The component has a maximum DC resistance of 130 mOhms and operates within a temperature range of -55 C to +125 C. Designed for through-hole mounting, it measures 21 mm in width.

Common Mode Chokes Feature Summary

Toroidal core construction for efficient magnetic coupling
Through-hole mounting configuration for PCB integration
High current handling capability up to 4 A

Common Mode Chokes Applications

Power supply noise filtering
Home appliance EMI suppression
General noise countermeasure circuits

Common Mode Chokes Procurement Notes

Verify the manufacturer part number against official Signal Transformer documentation to ensure authenticity. Confirm that the specific lot code matches your quality requirements. Check for any recent design changes or obsolescence notices directly from the supplier before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a 25.5 mH inductance is required for common mode noise reduction in high-current applications. Ensure the PCB layout accommodates the through-hole package dimensions and the 21 mm width constraint. Verify that the operating environment stays within the specified -55 C to +125 C temperature range.

Common Mode Chokes Part Context

This part belongs to the LPTC-V series of toroidal common mode chokes from Signal Transformer. The series is designed for robust electromagnetic interference suppression in various electronic systems. The specific model indicates its electrical characteristics including inductance value and current rating.
