LQH2HPN100MG0L

Fixed Inductors Overview

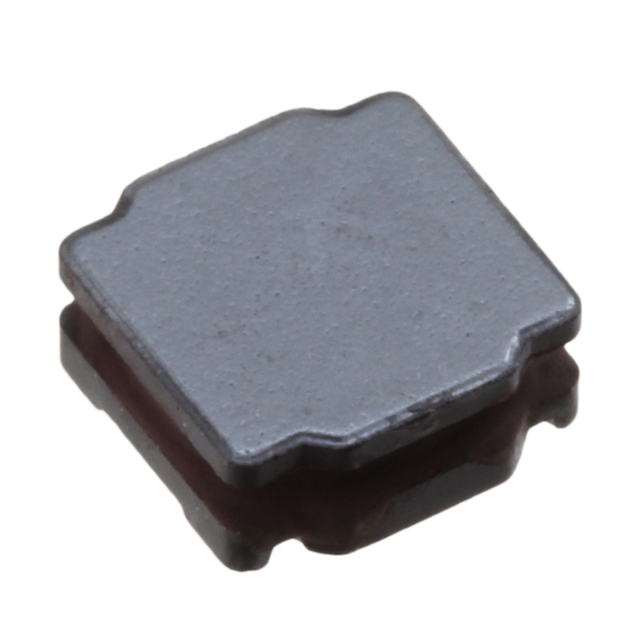

The Murata LQH2HPN100MG0L is a shielded, wirewound power inductor from the LQH2 series, housed in a 1008 (2520 metric) surface-mount package. It features a ferrite core and offers an inductance of 10 µH with a ±20% tolerance. The component has a maximum DC resistance of 876 mΩ, a saturation current of 700 mA, and a rated current of 490 mA. It operates within a temperature range of -40°C to +105°C.

Fixed Inductors Feature Summary

• Shielded wirewound construction for reduced electromagnetic interference
• Ferrite core design optimized for power applications
• Automotive-grade reliability compliant with AEC-Q200 standards

Fixed Inductors Applications

• Automotive power supply circuits
• DC-DC converter filtering
• General-purpose power management systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official documentation to ensure correct electrical characteristics and packaging configuration. Confirm that the selected variant matches the required current ratings and thermal performance specifications for the target application environment before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a shielded inductor is required to minimize magnetic field interference in compact designs. The 1008 footprint provides a balance between current handling capability and board space efficiency. Ensure the operating current remains below the 490 mA rating to maintain stable inductance values.

Fixed Inductors Part Context

This part belongs to the LQH2 series of fixed power inductors manufactured by Murata Electronics. The series is designed for robust performance in demanding environments, featuring shielded structures to prevent noise coupling. The LQH2HPN100MG0L specifically targets applications requiring reliable power filtering in automotive and industrial electronics.

Fixed Inductors Replacement Considerations

Cross-reference with other LQH2 series variants such as LQH2HPZ100MGRL or LQH2HPN100MGRL for potential substitutes. Verify that alternative parts match the exact inductance, current ratings, and physical dimensions to ensure compatibility with existing PCB layouts and circuit requirements.
