LQP02HQ1N8W02E

Fixed Inductors Overview

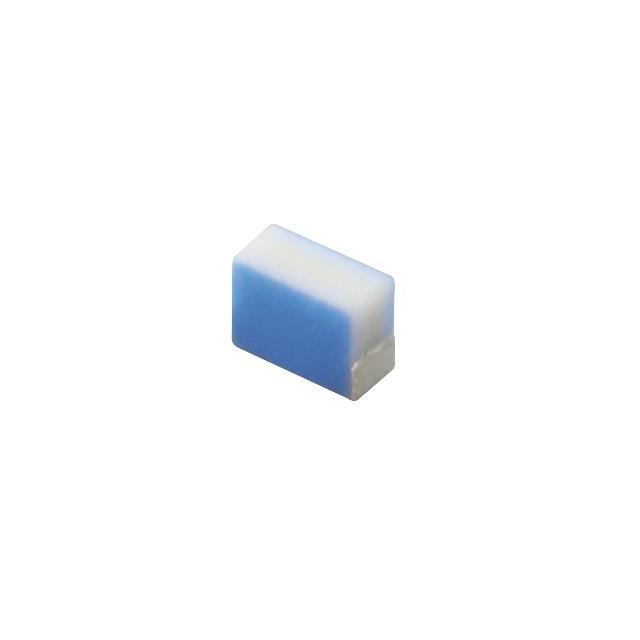

The Murata LQP02HQ1N8W02E is an unshielded thin film RF inductor designed for surface-mount applications. It features a nominal inductance of 1.8 nH with a tight tolerance of ±0.05 nH. The component supports a maximum DC current of 700 mA and maintains a maximum DC resistance of 80 mOhms. Operating within a temperature range of -55°C to +125°C, it exhibits a minimum Q factor of 14 at 500 MHz and achieves a self-resonant frequency of 19 GHz. The device utilizes a standard 01005 (0402 metric) package footprint.

Fixed Inductors Feature Summary

• Thin film construction provides high precision and stability for RF signal paths
• Unshielded design minimizes parasitic effects in compact layouts
• High self-resonant frequency ensures effective performance in ultra-high frequency circuits

Fixed Inductors Applications

• RF matching networks in mobile communication devices
• Impedance matching stages in wireless transceivers
• Filter components in high-frequency signal processing circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm packaging configuration, as variations exist between tape-and-reel and cut-tape formats. Ensure the procurement channel sources genuine Murata Electronics products to guarantee adherence to RoHS3 compliance standards. Cross-reference the manufacturer part number against official distributor catalogs to validate authenticity before finalizing acquisition.

Fixed Inductors Selection Notes

Select this component when circuit designs require minimal inductance values with strict tolerance constraints. The thin film technology offers superior thermal stability compared to conventional ferrite types. Engineers should consider the 01005 footprint dimensions for dense PCB layouts where space optimization is critical for modern portable electronic devices.

Fixed Inductors Part Context

This component belongs to the LQP02HQ series of RF inductors manufactured by Murata Electronics. The series specializes in providing reliable passive components for high-frequency applications. The specific model represents a standard value within the broader portfolio of surface-mount inductors designed for consumer electronics and telecommunications infrastructure.

Fixed Inductors Replacement Considerations

Direct substitutes include other Murata models within the same series offering identical 1.8 nH inductance and 01005 package dimensions. Verify that alternative parts maintain comparable self-resonant frequencies and DC current ratings to ensure circuit compatibility without redesign.
