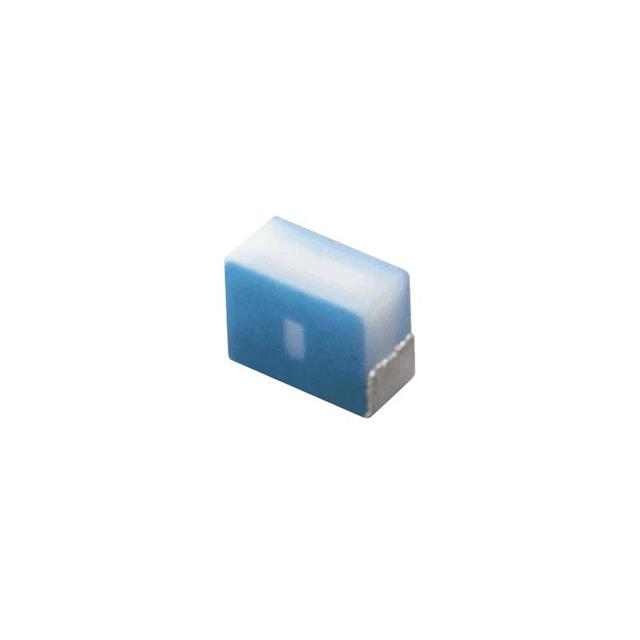

LQP02HV1N9B02L

Description：FIXED IND 1.9NH 640MA NONAUTO
Series：LQP02
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:adccaa4db586 Category: Fixed Inductors Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LQP02HV1N9B02L is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is FIXED IND 1.9NH 640MA NONAUTO. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LQP02HV1N9B02L

Description：FIXED IND 1.9NH 640MA NONAUTO
Series：LQP02
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Thin Film
Material - Core：-
Inductance：1.9 nH
Tolerance：±0.1nH
Current Rating (Amps)：640 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：80mOhm Max
Q @ Freq：17 @ 500MHz
Frequency - Self Resonant：11.9GHz
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：500 MHz
Mounting Type：Surface Mount
Package / Case：01005 (0402 Metric)
Supplier Device Package：1005
Size / Dimension：0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max)：0.013" (0.32mm)
Features：-

Fixed Inductors datasheet and documents for LQP02HV1N9B02L

LQP02HV1N9B02L

Fixed Inductors Overview

The Murata LQP02HV1N9B02L is an unshielded thin film RF inductor housed in a 01005 (0402 metric) surface-mount package. It features a nominal inductance of 1.9 nH with a tolerance of ±0.1 nH. The component supports a maximum DC current of 640 mA and has a maximum DC resistance of 80 mΩ. It operates within a temperature range of -55°C to +125°C, offering high reliability for compact RF circuit designs.

Fixed Inductors Feature Summary

Thin film construction ensures stable electrical performance across varying conditions
Unshielded design minimizes parasitic effects in high-frequency applications
Ultra-compact 01005 footprint enables dense PCB layout configurations

Fixed Inductors Applications

RF signal processing circuits
High-frequency impedance matching networks
Wireless communication module input/output stages

Fixed Inductors Procurement Notes

Verify the specific suffix 'HV' against official Murata documentation to confirm the exact inductance value and tolerance specifications. Ensure that the selected variant aligns with the required thermal operating range and current handling capabilities for the target application environment before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when ultra-low inductance values are required in minimal space constraints. The thin film technology provides superior stability compared to thick film alternatives. Consider the unshielded nature of the device during layout planning to manage potential electromagnetic interference interactions with adjacent components.

Fixed Inductors Part Context

This part belongs to the Murata LQP series of RF chip inductors. The series utilizes thin film technology to achieve precise inductance values in small packages. The LQP02HV1N9B02L specifically targets applications requiring sub-nanohenry precision in the 01005 form factor.
