LQP02TN13NJ02L

Fixed Inductors Overview

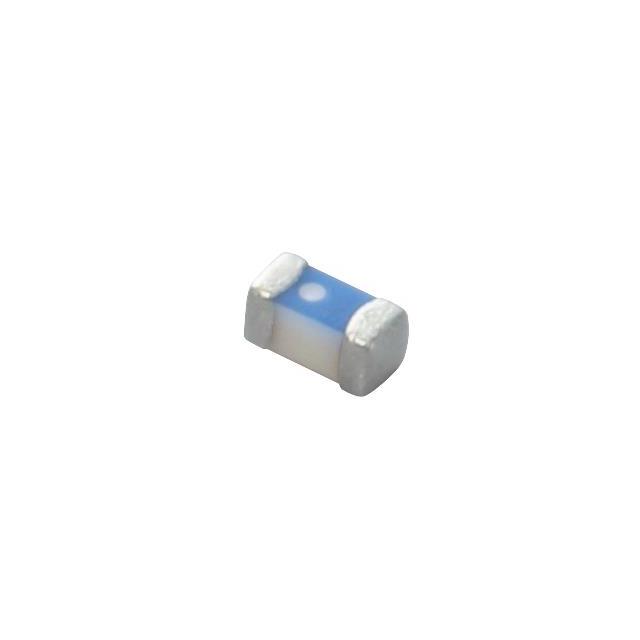

The Murata LQP02TN13NJ02L is a fixed thin-film RF inductor designed for surface-mount applications. It features an inductance of 13 nH with a tolerance of ±5%. The component operates within a temperature range of -55°C to +125°C and supports a maximum DC current of 140 mA. Its maximum DC resistance is 3.2 Ohms, and it exhibits a self-resonant frequency of 3.5 GHz. The device utilizes an unshielded construction housed in a compact 01005 (0402 metric) package.

Fixed Inductors Feature Summary

• Thin-film technology enables high inductance values within the 0402 footprint
• Unshielded design suitable for general RF signal paths
• Wide operating temperature range for diverse environmental conditions

Fixed Inductors Applications

• RF circuit matching networks
• High-frequency signal filtering
• Impedance matching in mobile communication devices

Fixed Inductors Procurement Notes

Verify the specific suffix codes against official datasheets to confirm tolerance and packaging details. Ensure compatibility with standard SMT reflow processes. Confirm RoHS compliance status through manufacturer documentation prior to integration into production lines.

Fixed Inductors Selection Notes

Select this component when a 13 nH value is required in the smallest available SMD footprint. Consider the 140 mA current rating for power handling limits. Evaluate the unshielded nature regarding potential electromagnetic interference in dense layouts compared to shielded alternatives.

Fixed Inductors Part Context

This part belongs to the Murata LQP02TN series of chip inductors. The series employs fine-forming technology to achieve higher inductance values than conventional models in the same size. It serves as a solution for miniaturized RF designs requiring precise inductance control.

Fixed Inductors Replacement Considerations

Consult official substitution lists for equivalent thin-film inductors. Verify that alternative parts match the 13 nH nominal value, 01005 package dimensions, and similar electrical characteristics before implementation.
