LQP02TN3N6C02L

Fixed Inductors Overview

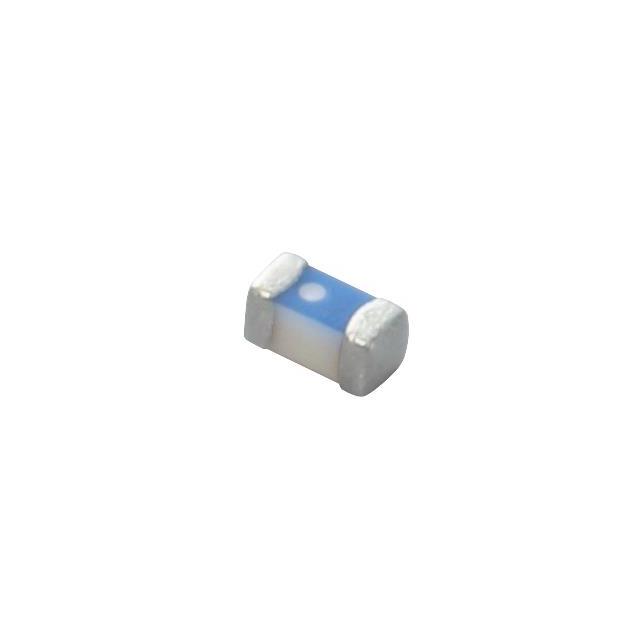

The Murata LQP02TN3N6C02L is a surface-mount RF inductor from the LQP series, designed for high-frequency applications. It features an unshielded thin-film construction within a compact 01005 (0402 metric) package. The component provides a nominal inductance of 3.6 nH with a tolerance of ±0.2 nH. It supports a maximum DC current of 180 mA and exhibits a maximum DC resistance of 1.3 Ohms. The device operates reliably across a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Thin-film technology ensures stable performance in RF circuits
• Unshielded design minimizes parasitic effects at high frequencies
• Compact 01005 footprint enables dense PCB layouts

Fixed Inductors Applications

• RF signal processing modules
• High-frequency impedance matching networks
• Wireless communication devices

Fixed Inductors Procurement Notes

Verify the specific suffix C02L against official Murata documentation to confirm terminal configuration and packaging type. Ensure compatibility with standard SMD reflow processes. Confirm RoHS compliance status through the latest manufacturer datasheet before integration into regulated equipment designs.

Fixed Inductors Selection Notes

Select this component when space constraints require a 01005 form factor for RF filtering or matching. The thin-film construction offers superior stability compared to thick-film alternatives. Evaluate the 180 mA current rating against circuit requirements to prevent saturation. Consider the unshielded nature for applications where magnetic interference coupling is manageable.

Fixed Inductors Part Context

This part belongs to the Murata LQP series of fixed RF inductors. The series utilizes thin-film technology to achieve precise inductance values in miniature packages. These components are engineered for use in mobile phones, wireless LANs, and other high-frequency electronic systems requiring reliable RF performance.

Fixed Inductors Replacement Considerations

Consult Murata's official substitution guide for verified equivalents. Cross-referencing requires matching inductance, tolerance, package size, and current ratings. Generic substitutes may not replicate the thin-film characteristics necessary for specific RF applications.
