LQP02TQ0N9C02L

Fixed Inductors Overview

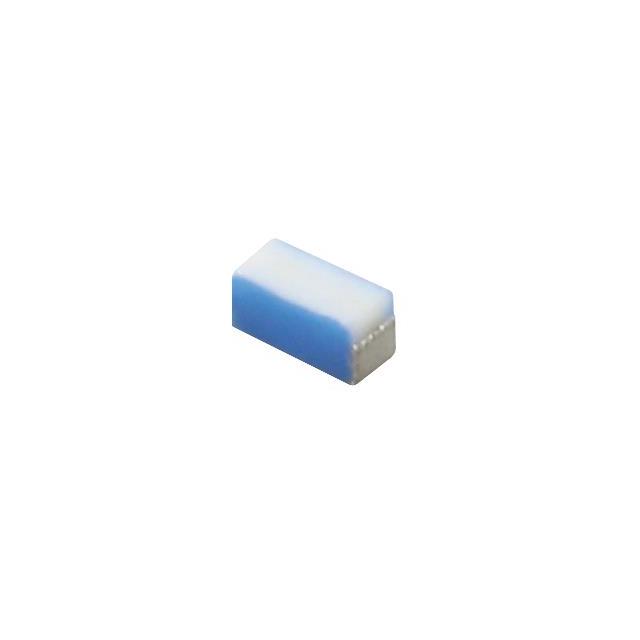

The Murata LQP02TQ0N9C02L is an unshielded thin film RF inductor in a 01005 (0402 metric) package. It features an inductance of 0.9 nH with a tolerance of ±0.2 nH. The component supports a maximum DC current of 580 mA and has a maximum DC resistance of 150 mOhms. It operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Thin film construction for high-frequency stability
• Unshielded design suitable for compact layouts
• Miniature 01005 footprint for space-constrained PCBs

Fixed Inductors Applications

• RF circuit matching networks
• High-frequency signal filtering
• EMC suppression components

Fixed Inductors Procurement Notes

Verify the specific suffix 'L' against the official datasheet to confirm reel packaging requirements. Ensure the 01005 package dimensions align with your PCB land pattern. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement specifications.

Fixed Inductors Selection Notes

Select this component when ultra-low inductance values are required in minimal space. The thin film technology offers precision compared to standard chip inductors. Consider the 580 mA current rating for power handling needs. Verify self-resonant frequency constraints for target RF bands.

Fixed Inductors Part Context

This part belongs to the Murata LQP series, which specializes in high-frequency RF inductors. The LQP02TQ variant utilizes thin film technology, distinguishing it from ferrite-based counterparts. This series targets advanced mobile and communication devices requiring precise impedance control.

Fixed Inductors Replacement Considerations

Consult official Murata substitution guides for direct equivalents. Cross-reference inductance, tolerance, and physical dimensions carefully. No public substitute part numbers are confirmed in available data.
