LQP03HQR10J02D

Fixed Inductors Overview

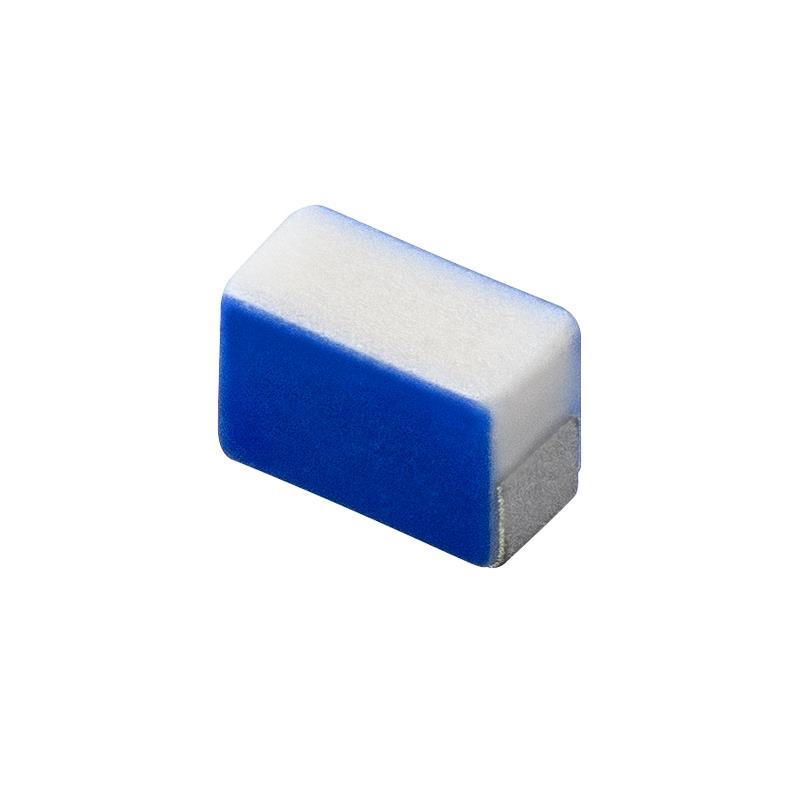

The LQP03HQR10J02D is an unshielded thin film RF inductor manufactured by Murata Electronics. It features a nominal inductance of 100 nH with a tolerance of 5%. The component is housed in a 0201 (0603 metric) surface-mount package, measuring 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height. It supports a maximum DC current of 80 mA and has a maximum DC resistance of 7 ohms. The device operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Utilizes thin film technology for stable high-frequency performance
• Unshielded construction suitable for compact circuit layouts
• Designed for signal filtering and impedance matching applications

Fixed Inductors Applications

• RF signal filtering in mobile communication devices
• Impedance matching networks in wireless transceivers
• Noise suppression circuits in high-frequency PCBs

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Murata documentation to ensure correct tolerance and packaging specifications. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents prior to integration into production environments.

Fixed Inductors Selection Notes

Select this component for designs requiring precise 100 nH inductance in minimal space. Ensure the 80 mA current rating aligns with circuit requirements. Consider the unshielded nature when planning layout to prevent unwanted coupling in dense RF assemblies.

Fixed Inductors Part Context

This part belongs to the LQP03HQ series of thin film RF inductors. These components are engineered for use in portable electronic devices where small form factors and reliable high-frequency characteristics are critical for maintaining signal integrity.

Fixed Inductors Replacement Considerations

Consult official Murata substitution guides for verified equivalents. Cross-reference parameters such as inductance value, tolerance, current rating, and physical dimensions to ensure functional compatibility without modifying the existing board design.
