LQP03TG56NJ02D

Fixed Inductors Overview

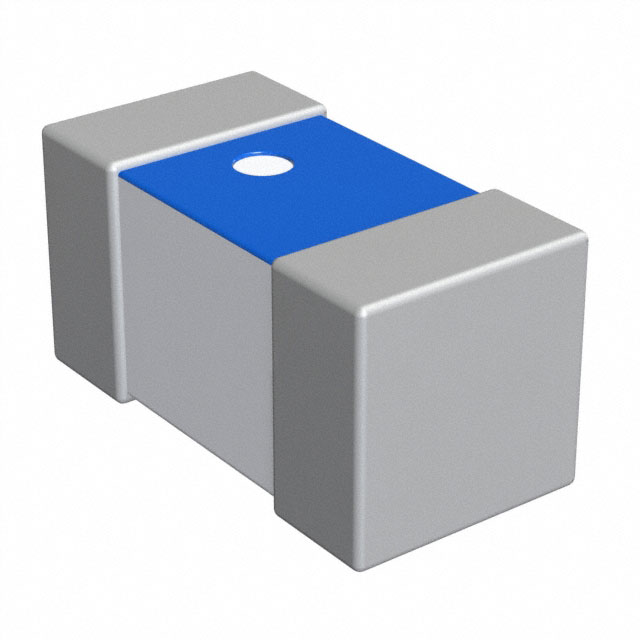

The Murata LQP03TG56NJ02D is a thin-film RF inductor designed for surface-mount applications. It features an unshielded construction within a 0201 (0603 metric) package, measuring 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height. The component provides an inductance of 56 nH with a tolerance of ±5%. It operates effectively up to a self-resonant frequency of 1.2 GHz and supports a maximum DC current of 130 mA. The device exhibits a maximum DC resistance of 2.5 Ohms and functions reliably across a temperature range from -55°C to +125°C.

Fixed Inductors Feature Summary

• Utilizes thin-film technology for stable high-frequency performance
• Unshielded design suitable for compact RF circuit layouts
• Capable of operation at self-resonant frequencies up to 1.2 GHz

Fixed Inductors Applications

• RF signal processing circuits
• High-frequency filtering applications
• Impedance matching networks in wireless devices

Fixed Inductors Procurement Notes

Verify the specific suffix J02D against official Murata documentation to confirm tolerance and packaging specifications. Ensure compatibility with standard 0201 footprint dimensions during PCB layout. Confirm availability status as distribution channels may vary. Cross-reference technical parameters with the latest datasheet before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact 0201 form factor is required for RF applications. The thin-film construction offers distinct advantages over multilayer types regarding Q-factor stability at higher frequencies. Consider the 130 mA current rating and 2.5 Ohm resistance limits to ensure adequate performance margins in the target circuit design.

Fixed Inductors Part Context

This part belongs to the Murata LQP series of RF inductors, specifically utilizing thin-film technology. The LQP series is engineered for high-frequency applications where size constraints are critical. The 0201 package allows for high-density mounting on printed circuit boards, making it suitable for modern portable electronic devices requiring miniaturized passive components.

Fixed Inductors Replacement Considerations

Consult official Murata documentation for verified substitute part numbers. Do not assume functional equivalence with other series without confirming electrical parameter alignment.
