LQP03TN11NHZ2D

Fixed Inductors Overview

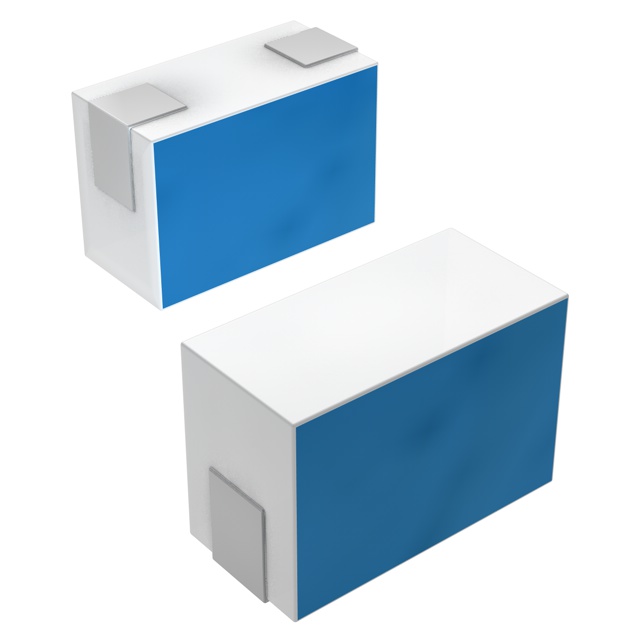

The Murata LQP03TN11NHZ2D is an unshielded thin film RF inductor designed for surface-mount applications. It features a nominal inductance of 11 nH with a tolerance of ±3%. The component supports a maximum DC current of 250 mA and exhibits a maximum DC resistance of 800 mOhms. It operates within a temperature range of -55°C to +125°C, achieving a minimum Q factor of 14 at 500 MHz and a self-resonant frequency of 2.9 GHz. The device utilizes a ferrite core and is housed in a compact 0201 (0603 metric) package measuring 0.6 mm x 0.3 mm x 0.3 mm.

Fixed Inductors Feature Summary

• Thin film construction for stable RF performance
• Unshielded design suitable for high-frequency circuits
• AEC-Q200 qualified for automotive reliability

Fixed Inductors Applications

• RF signal processing
• Impedance matching networks
• Automotive electronics systems

Fixed Inductors Procurement Notes

Verify the specific suffix Z2D against official Murata documentation to confirm packaging configuration and terminal specifications. Ensure compatibility with standard PCB mounting styles and check RoHS compliance status through authorized distributors before procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring low inductance values in minimal footprint spaces. Consider the 250 mA current rating and 800 mOhms DCR for power handling requirements. The unshielded nature requires careful layout consideration to minimize electromagnetic interference in dense designs.

Fixed Inductors Part Context

This part belongs to the Murata LQP series of chip RF inductors. The LQP03TN variant specifically denotes thin film technology within the 0201 package size. This series is engineered for high-frequency stability and miniaturization needs in modern electronic devices.

Fixed Inductors Replacement Considerations

Consult official Murata substitution guides for verified equivalents. Generic cross-references may not match the thin film construction or AEC-Q200 qualification standards required for this specific application.
