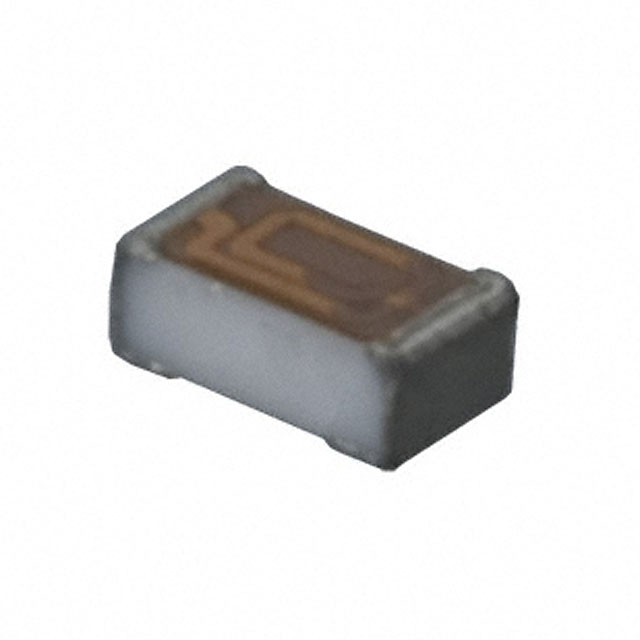

LQP15MN1N4W02D is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is FIXED IND 1.4NH 280MA 200MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for LQP15MN1N4W02D
- Description：FIXED IND 1.4NH 280MA 200MOHM SM
- Series：LQP15
- Mfr：Murata Electronics
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Thick Film
- Material - Core：-
- Inductance：1.4 nH
- Tolerance：±0.05nH
- Current Rating (Amps)：280 mA
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：200mOhm Max
- Q @ Freq：13 @ 500MHz
- Frequency - Self Resonant：6GHz
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Inductance Frequency - Test：500 MHz
- Mounting Type：Surface Mount
- Package / Case：0402 (1005 Metric)
- Supplier Device Package：0402 (1005 Metric)
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max)：0.018" (0.45mm)
- Features：-
Fixed Inductors datasheet and documents for LQP15MN1N4W02D
Fixed Inductors Overview
The Murata LQP15MN1N4W02D is an unshielded thin film RF inductor in a 0402 (1005 metric) surface-mount package. It features a nominal inductance of 1.4 nH with a tolerance of 0.05 nH. The component supports a maximum DC current of 280 mA and has a maximum DC resistance of 200 mOhms. It operates within a temperature range of -55°C to +125°C, offering a minimum Q factor of 13 and a self-resonant frequency of 6 GHz.
Fixed Inductors Feature Summary
- Thin film construction for stable RF performance
- Unshielded design suitable for compact layouts
- High self-resonant frequency for microwave applications
Fixed Inductors Applications
- RF circuit matching networks
- Microwave signal processing
- Wireless communication modules
Fixed Inductors Procurement Notes
Verify the specific ordering suffix to confirm the exact inductance value and tolerance, as variations exist within the LQP15MN series. Confirm availability status, as this part may be discontinued or subject to supply constraints. Ensure the selected variant matches the required DC current and resistance specifications for the target application.
Fixed Inductors Selection Notes
Select this component when a low-inductance, high-frequency solution is required in a standard 0402 footprint. The thin film technology provides consistent performance at microwave frequencies. Consider the unshielded nature regarding potential electromagnetic interference in dense PCB layouts compared to shielded alternatives.
Fixed Inductors Part Context
This part belongs to Murata's LQP series of RF inductors, designed for general-purpose radio frequency applications. The series utilizes thin film technology to achieve precise inductance values and high self-resonant frequencies, making it suitable for modern wireless devices requiring miniaturization.
Fixed Inductors Replacement Considerations
Murata suggests the LQG15HS2N4B02D as an alternate option. Verify that the substitute meets the same electrical requirements, particularly inductance and self-resonant frequency, before implementation.
