LQW04AN2N3C00D

Fixed Inductors Overview

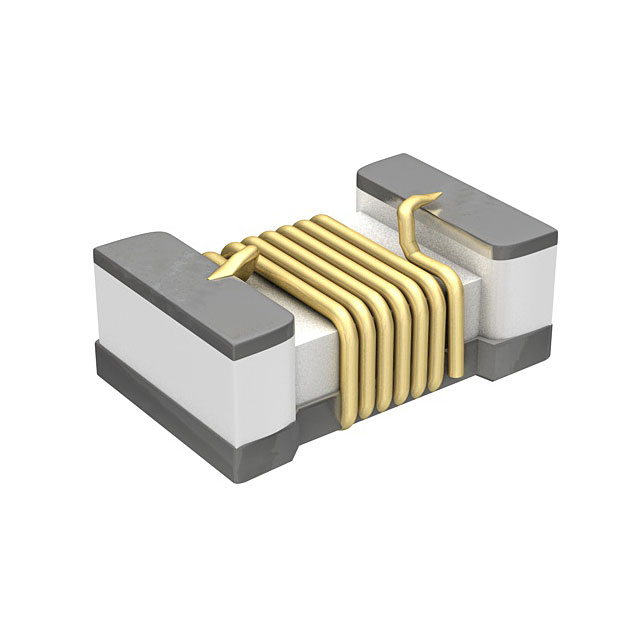

The Murata LQW04AN2N3C00D is a surface-mount RF inductor from the LQW series, housed in a compact 03015 (0804 metric) package. It features an air core and unshielded wirewound construction. The component provides a nominal inductance of 2.3 nH with a tolerance of ±0.2 nH. It supports a maximum DC current of 780 mA and has a maximum DC resistance of 70 mΩ. The self-resonant frequency reaches 20 GHz, with a minimum Q factor of 18 at 250 MHz. Operating temperatures range from -55°C to +125°C.

Fixed Inductors Feature Summary

• Utilizes an air core for non-magnetic performance suitable for sensitive RF environments
• Unshielded wirewound design minimizes parasitic effects at high frequencies
• Compact 03015 footprint enables dense PCB layout for mobile devices

Fixed Inductors Applications

• RF circuits in cellular telephones
• High-frequency circuits in PDAs
• Mobile device signal processing modules

Fixed Inductors Procurement Notes

Verify the specific suffix C00D against the official Murata datasheet to confirm the exact inductance value and tolerance. Ensure the procurement channel sources genuine components to guarantee compliance with RoHS3 standards and specified electrical parameters. Cross-reference the Mouser or DigiKey part numbers for accurate identification during ordering.

Fixed Inductors Selection Notes

Select this component when ultra-low inductance values are required for impedance matching or filtering in high-frequency paths. The 03015 package size is optimal for space-constrained designs in modern mobile electronics. Consider the 780 mA current rating and 70 mΩ resistance for power handling requirements in RF front-end applications.

Fixed Inductors Part Context

This part belongs to the Murata LQW04A series, which consists of miniature wirewound chip inductors designed specifically for high-frequency applications. The series targets the mobile communications market, offering small footprints like the 03015 case size to support the miniaturization trends in smartphones and personal digital assistants.

Fixed Inductors Replacement Considerations

Consult the official Murata LQW04AN specification sheet for verified substitute part numbers within the same series that match the 2.3 nH inductance and 03015 package dimensions.
