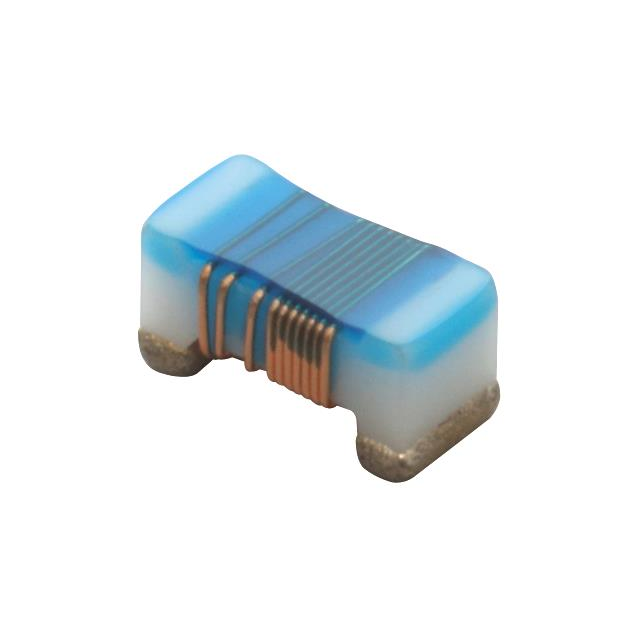

LQW18AN39NJ8ZD

$0.15

Description：FIXED IND 39NH 1A 0.16OHM SMD
Series：LQW18
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a879ad5f35c2 Category: Fixed Inductors Brand: Murata Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LQW18AN39NJ8ZD is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Murata Electronics. Its product description is FIXED IND 39NH 1A 0.16OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LQW18AN39NJ8ZD

Description：FIXED IND 39NH 1A 0.16OHM SMD
Series：LQW18
Mfr：Murata Electronics
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Non-Magnetic
Inductance：39 nH
Tolerance：±5%
Current Rating (Amps)：1:00 AM
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：160mOhm Max
Q @ Freq：40 @ 250MHz
Frequency - Self Resonant：3.28GHz
Ratings：AEC-Q200
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：-
Size / Dimension：0.065" L x 0.039" W (1.65mm x 0.99mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for LQW18AN39NJ8ZD

LQW18AN39NJ8ZD

Fixed Inductors Overview

The Murata LQW18AN39NJ8ZD is an unshielded wirewound RF inductor designed for surface-mount applications. It features a nominal inductance of 39 nH with a tolerance of ±5%. The component supports a maximum DC current of 1 A and exhibits a maximum DC resistance of 160 mOhms. It operates within a temperature range of -55°C to +125°C and meets the AEC-Q200 automotive qualification standard. Key electrical parameters include a minimum Q factor of 40 and a self-resonant frequency of 3.28 GHz. The physical dimensions are 1.65 mm in length, 0.99 mm in width, and 0.9 mm in height, conforming to the 0603 (1608 metric) package.

Fixed Inductors Feature Summary

Unshielded wirewound construction suitable for high-frequency RF circuits
Automotive-grade reliability certified under AEC-Q200 standards
Wide operating temperature range from -55°C to +125°C

Fixed Inductors Applications

RF circuit design
Automotive electronics systems
Surface-mount PCB assembly

Fixed Inductors Procurement Notes

Verify that the specific part number suffix matches the required tolerance and packaging configuration. Confirm compliance with RoHS directives and REACH regulations prior to integration. Ensure storage conditions adhere to moisture sensitivity level requirements to maintain component integrity during manufacturing processes.

Fixed Inductors Selection Notes

Select this component when an unshielded inductor is required to minimize magnetic interference in adjacent traces. The 0603 footprint offers space efficiency for dense layouts. Consider the 1 A current rating for power handling needs and verify that the 3.28 GHz self-resonant frequency aligns with the target operational bandwidth.

Fixed Inductors Part Context

This device belongs to the LQW18AN_Z series of fixed inductors manufactured by Murata Electronics. The series provides various inductance values optimized for radio frequency applications. The LQW18AN39NJ8ZD specifically utilizes a wirewound technology to achieve stable performance across the specified temperature range while maintaining low DC resistance.
