LQW2UAS56NF0CL

Fixed Inductors Overview

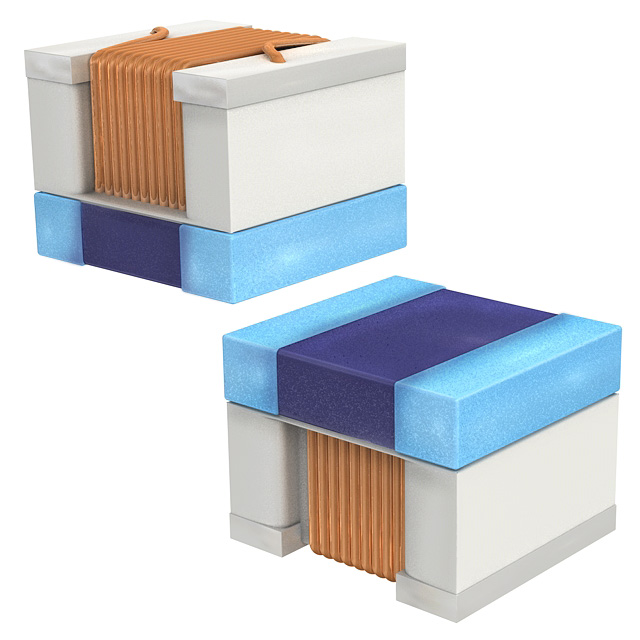

The Murata LQW2UAS56NF0CL is a surface-mount RF inductor from the LQW2UA series, utilizing a wirewound construction with an unshielded design. It features a nominal inductance of 56 nH with a tolerance of ±5%. The component supports a rated current of 1000 mA and exhibits a maximum DC resistance of 0.180 ohms. Electrical performance includes a minimum quality factor of 60 and a self-resilient frequency of 1.5 GHz when tested at 50 MHz. The device operates within a temperature range of -40°C to +85°C and conforms to RoHS standards.

Fixed Inductors Feature Summary

• Wirewound construction provides stable inductance characteristics for radio frequency applications.
• Unshielded design allows for flexible placement without magnetic interference constraints.
• High rated current capability supports power handling requirements in signal paths.

Fixed Inductors Applications

• RF matching networks
• Impedance transformation circuits
• Filter components in communication modules

Fixed Inductors Procurement Notes

Verify the specific suffix code against official Murata documentation to confirm exact electrical tolerances and testing frequencies. Ensure that the selected variant matches the required operating temperature range and current ratings for the target application. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and authenticity before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component based on its 56 nH inductance value and high current rating suitable for RF signal processing. Consider the unshielded nature of the device when designing PCB layouts to minimize parasitic coupling effects. Evaluate the self-resonant frequency relative to the operating bandwidth to ensure effective performance within the intended circuit environment.

Fixed Inductors Part Context

This component belongs to the Murata LQW2UA series of surface-mount RF inductors. The series offers various inductance values optimized for radio frequency applications. These devices are designed for integration into compact electronic systems requiring precise impedance control and stable performance across defined temperature ranges.

Fixed Inductors FAQ

What is the test frequency for the specified inductance?

The inductance specification is measured at a test frequency of 50 MHz.

Is this inductor shielded?

No, the LQW2UAS56NF0CL features an unshielded design.
