LQW2UASR91F00L

Fixed Inductors Overview

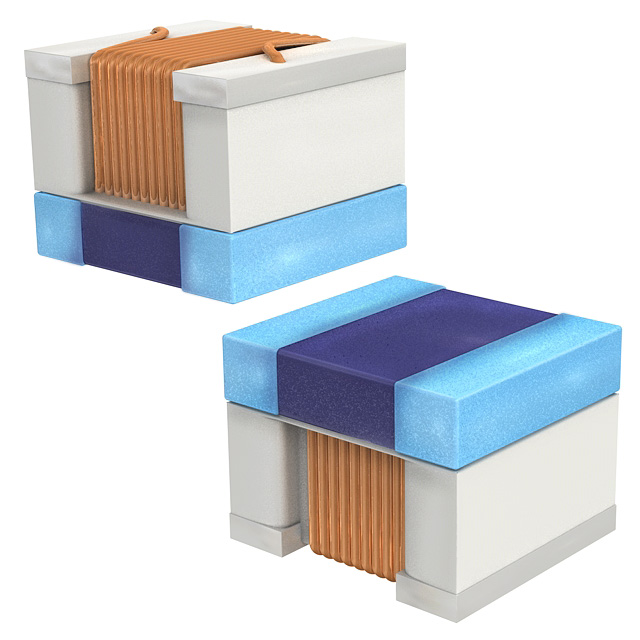

The Murata LQW2UASR91F00L is an unshielded wirewound RF inductor designed for surface mount applications. It features a nominal inductance of 910 nH with a tight tolerance of ±1%. The component operates within a frequency range up to a self-resonant frequency of 320 MHz, maintaining a quality factor of 35 at 50 MHz. It supports a maximum DC current of 380 mA and exhibits a maximum DC resistance of 1.68 Ohms. Housed in a 1008 (2520 metric) package measuring 2.62 mm by 2.45 mm, it functions reliably across a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Unshielded wirewound construction utilizing a non-magnetic core for stable RF performance.
• High precision inductance tolerance of ±1% ensuring accurate circuit tuning.
• Surface mount design compatible with standard PCB assembly processes.

Fixed Inductors Applications

• RF signal processing circuits
• Impedance matching networks
• Filtering components in radio frequency systems

Fixed Inductors Procurement Notes

Verify the specific ordering suffix 'F' confirms the required ±1% tolerance level against project specifications. Ensure the 1008 package dimensions align with the designated footprint on the printed circuit board. Confirm that the 380 mA current rating satisfies the operational requirements of the target application without saturation. Check RoHS compliance status if environmental regulations apply to the manufacturing process.

Fixed Inductors Selection Notes

Select this component when precise inductance values are critical for RF circuit stability. The unshielded design requires careful layout consideration to minimize electromagnetic interference with adjacent traces. Evaluate the thermal environment to ensure operation remains within the specified -55°C to +125°C range. Consider the physical size constraints of the 1008 package relative to available board space.

Fixed Inductors Part Context

This part belongs to the Murata LQW2UA series of fixed RF inductors. The series offers various inductance values and tolerances within the same form factor. The LQW2UASR91F00L specifically targets applications requiring high accuracy compared to standard tolerance variants. It serves as a passive component for signal integrity in wireless communication devices.

Fixed Inductors Replacement Considerations

The LQW2UASR91J00L is a confirmed substitute offering identical electrical characteristics but with a wider ±5% tolerance. Designers must verify if the relaxed tolerance meets the specific circuit requirements before swapping parts.
