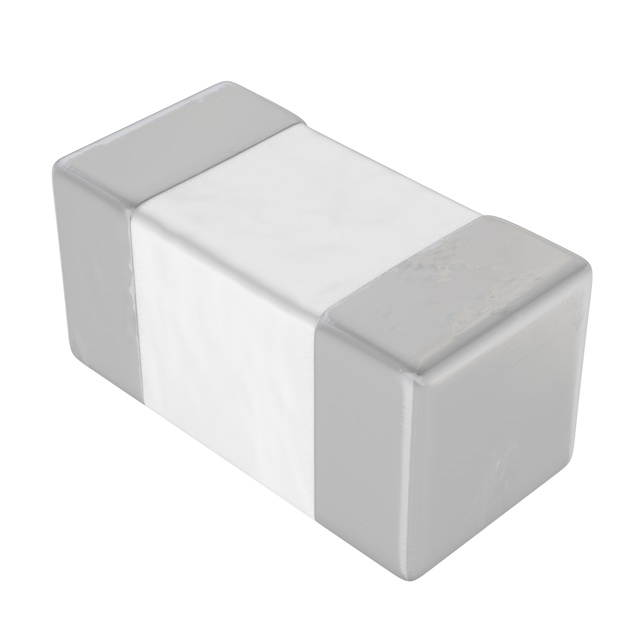

LRC0201BJ12NGV001T

$0.09

Description：FIXED IND 12NH 250MA 1.3 OHM SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b650265b98fc Category: Fixed Inductors Brand: Johanson Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LRC0201BJ12NGV001T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Johanson Technology Inc.. Its product description is FIXED IND 12NH 250MA 1.3 OHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LRC0201BJ12NGV001T

Description：FIXED IND 12NH 250MA 1.3 OHM SMD
Series：-
Mfr：Johanson Technology Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Multilayer
Material - Core：Ceramic
Inductance：12 nH
Tolerance：±5%
Current Rating (Amps)：250 mA
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：1.3Ohm Max
Q @ Freq：5 @ 100MHz
Frequency - Self Resonant：3.5GHz
Ratings：-
Operating Temperature：-55°C ~ 100°C
Inductance Frequency - Test：100 MHz
Mounting Type：Surface Mount
Package / Case：0201 (0603 Metric)
Supplier Device Package：0201 (0603 Metric)
Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)：0.013" (0.33mm)
Features：-

Fixed Inductors datasheet and documents for LRC0201BJ12NGV001T

LRC0201BJ12NGV001T

Fixed Inductors Overview

The LRC0201BJ12NGV001T is a multilayer ceramic chip inductor from Johanson Technology, designed for surface-mount applications. It features an unshielded construction within a compact 0201 (0603 metric) package, measuring 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height. The component provides a nominal inductance of 12 nH with a tolerance of 5%. It operates within a temperature range of -55°C to +100°C and maintains a minimum Q factor of 4. The device utilizes a ceramic core and SMD/SMT terminations.

Fixed Inductors Feature Summary

Unshielded multilayer ceramic construction suitable for high-frequency RF circuits
Compact 0201 footprint enabling dense PCB layout integration
Stable performance across extended industrial temperature ranges

Fixed Inductors Applications

RF matching networks
High-frequency signal filtering
Impedance matching circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Johanson Technology documentation to ensure correct tolerance and packaging specifications. Confirm RoHS compliance status through current manufacturer declarations. Cross-reference the Mouser part number 609-LRC0201BJ12NGV00 for accurate availability and lead time information prior to procurement.

Fixed Inductors Selection Notes

Select this component for applications requiring low inductance values in minimal space. Ensure the operating frequency aligns with the self-resonant characteristics typical for 12 nH unshielded inductors. Verify that the maximum rated current meets circuit requirements to prevent saturation or thermal issues during operation.

Fixed Inductors Part Context

This part belongs to the LRC series of radio frequency multilayer inductors manufactured by Johanson Technology. The series focuses on providing reliable passive components for wireless communication devices and RF modules. The 0201 size represents a standard industry form factor for miniaturized electronics.
