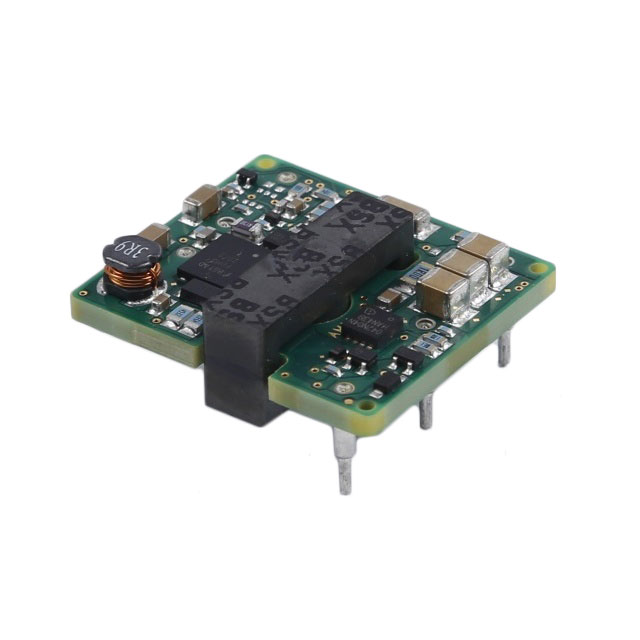

LRS3120N1A5N25W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists NetPower. Its product description is DC DC CONVERTER 12V 18W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for LRS3120N1A5N25W
- Description：DC DC CONVERTER 12V 18W
- Series：LRS (18W)
- Mfr：NetPower
- Package：Tray
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：18V
- Voltage - Input (Max)：75V
- Voltage - Output 1：12V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：1.5A
- Power (Watts)：18 W
- Voltage - Isolation：2.25 kV
- Applications：ITE (Commercial)
- Features：Adjustable Output, Remote On/Off, Remote Sense
- Operating Temperature：-40°C ~ 85°C (With Derating)
- Efficiency：87%
- Mounting Type：Through Hole
- Package / Case：6-DIP Module
- Size / Dimension：1.10" L x 0.96" W x 0.39" H (27.9mm x 24.4mm x 9.9mm)
- Supplier Device Package：-
- Control Features：Enable, Active Low
- Approval Agency：-
- Standard Number：-
DC DC Converters datasheet and documents for LRS3120N1A5N25W
