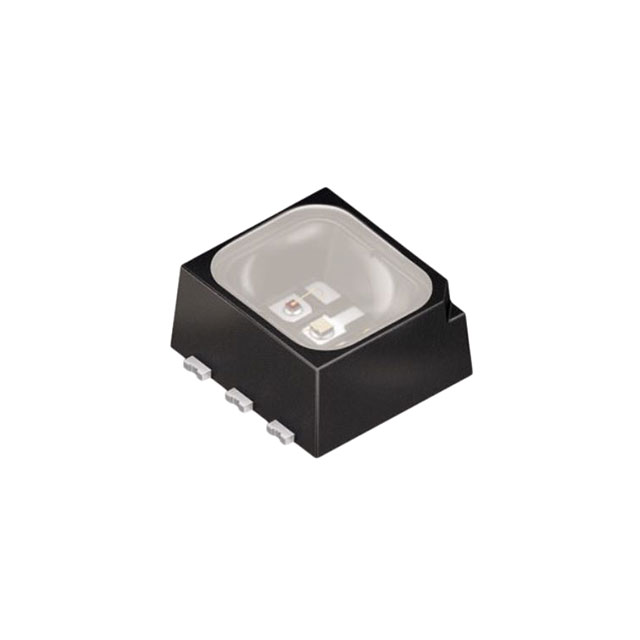

LRTBGRUG-TFTI-1+UIVD-57+RERH-57-20-L-ZC

Description：LED RGB 6PLCC T/H
Series：DISPLIX® Black
Mfr：ams-OSRAM USA INC.
Package：Bulk

SKU:a120527e7156 Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LRTBGRUG-TFTI-1+UIVD-57+RERH-57-20-L-ZC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED RGB 6PLCC T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LRTBGRUG-TFTI-1+UIVD-57+RERH-57-20-L-ZC

Description：LED RGB 6PLCC T/H
Series：DISPLIX® Black
Mfr：ams-OSRAM USA INC.
Package：Bulk
Color：Red, Green, Blue (RGB)
Configuration：-
Lens Color：-
Lens Transparency：-
Millicandela Rating：-
Lens Style：-
Lens Size：-
Voltage - Forward (Vf) (Typ)：-
Current - Test：-
Viewing Angle：120°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：6-SMD, Flat Leads
Supplier Device Package：6-PLCC
Size / Dimension：4.50mm L x 4.50mm W
Height (Max)：2.20mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LRTBGRUG-TFTI-1+UIVD-57+RERH-57-20-L-ZC

LRTBGRUG-TFTI-1+UIVD-57+RERH-57-20-L-ZC

LED Indication - Discrete Overview

The LRTBGRUG-TFTI-1+UIVD-57+RERH-57-20-L-ZC is a Red, Green, Blue (RGB) LED Indication component manufactured by ams-OSRAM USA INC. It features a Discrete 6-SMD, Flat Leads package configuration. This specific part number represents an RGB LED solution designed for visual indication applications.

LED Indication - Discrete Feature Summary

Provides combined Red, Green, and Blue light output for multi-color indication
Utilizes a discrete surface-mount design with flat leads

LED Indication - Discrete Applications

Visual status indication in electronic devices
Multi-color signaling in consumer electronics
Panel indicator applications requiring RGB color mixing

LED Indication - Discrete Procurement Notes

Verify the complete ordering suffix to ensure exact match of the RGB combination and package variant. Confirm that the 6-SMD flat lead form factor aligns with your PCB footprint requirements. Cross-reference the manufacturer's latest documentation to validate current availability and any potential updates to the component specifications before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a single RGB unit is preferred over separate discrete LEDs to save board space. Ensure the application supports the electrical characteristics required for driving three distinct color channels within one package. Verify thermal management capabilities if high brightness levels are necessary for the intended visibility requirements.

LED Indication - Discrete Part Context

This component belongs to the discrete LED indicator category from ams-OSRAM. It integrates multiple semiconductor dies into a single package to provide full-color capability. The 6-SMD flat lead style facilitates automated assembly processes while maintaining a low profile suitable for compact electronic enclosures and modern device designs.
