LRTBGVSG-UHVC-34+ANAP-57+TETH-NP-20-S-XX

LED Indication - Discrete Overview

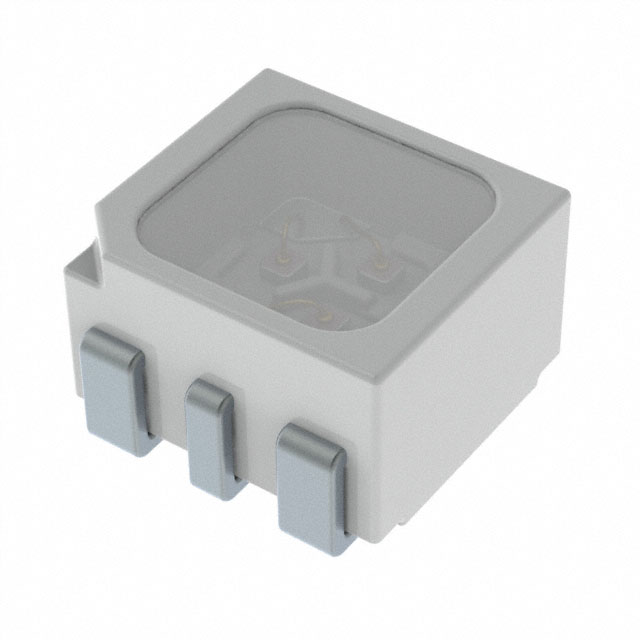

The LRTBGVSG-UHVC-34+ANAP-57+TETH-NP-20-S-XX is an RGB LED component from the MULTILED series by ams OSRAM. It features independent Red, Green, and Blue emitters in a 6-PLCC surface-mount package measuring 3.30mm x 3.00mm. The device utilizes specific wavelengths: 628nm for red, 531nm for green, and 466nm for blue. It operates with a forward voltage of 2.05V and is supplied in tape and reel packaging.

LED Indication - Discrete Feature Summary

• Integrates three distinct primary color channels (Red, Green, Blue) within a single compact surface-mount footprint
• Provides independent control over individual color elements to enable precise mixed-color output generation
• Utilizes optimized peak wavelengths for accurate color reproduction in display applications

LED Indication - Discrete Applications

• Backlighting for mobile devices and wearables
• Indicator lighting in consumer electronics
• General illumination requiring dynamic color mixing

LED Indication - Discrete Procurement Notes

Verify the complete ordering code including suffixes against official ams OSRAM documentation to ensure correct wavelength and binning specifications. Confirm that the 6-PLCC package dimensions align with your PCB footprint requirements. Check for RoHS compliance status and lead-free solderability data in the latest datasheet before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require integrated RGB functionality without separate discrete LEDs. Consider the 6-PLCC package size relative to available board area. Evaluate thermal management needs as multiple junctions are housed in one package. Ensure driver circuits support the required forward voltage levels for each channel independently.

LED Indication - Discrete Part Context

This part belongs to the MULTILED family, designed for high-density integration in portable electronics. It represents a solution for creating full-color displays or indicators in minimal space. The product line emphasizes reliability and consistent color performance for mass-produced consumer goods.

LED Indication - Discrete Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify pinout compatibility and spectral characteristics if considering alternative RGB packages from other manufacturers.
