LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZC

LED Indication - Discrete Overview

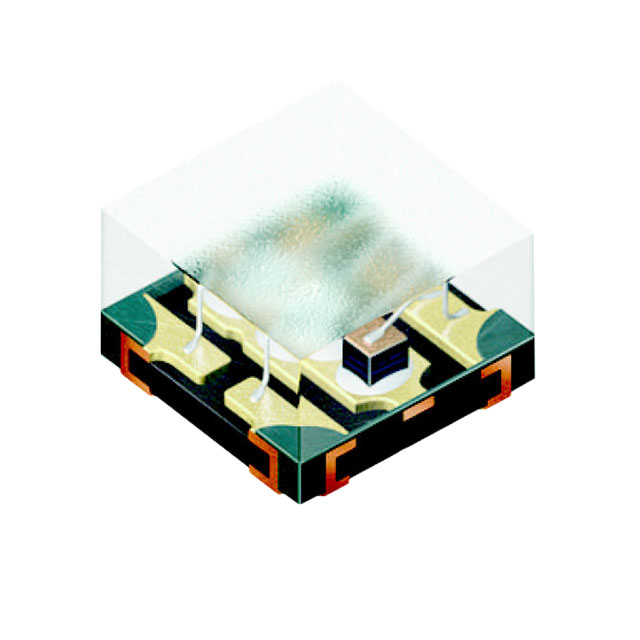

The LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZC is an RGB surface-mount LED from the Multi CHIPLED series by ams OSRAM. It features a common anode configuration in a 0404 (1010 metric) package with dimensions of 1.00mm x 1.00mm x 0.75mm max. The device emits red light at 623nm peak wavelength, green at 530nm, and blue at 471nm. Typical forward voltages are 1.95V for red and 2.7V for green and blue. Intensity ratings are 102mcd for red, 228mcd for green, and 51mcd for blue. Test currents are specified as 10mA for red and 5mA for green and blue channels.

LED Indication - Discrete Feature Summary

• Integrates three distinct LED chips (red, green, blue) into a single compact surface-mount package.
• Features a common anode electrical configuration for simplified circuit design.
• Provides a wide viewing angle of 120 degrees for broad illumination coverage.

LED Indication - Discrete Applications

• Status indication in electronic devices
• Backlighting for displays and interfaces
• Decorative lighting applications

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'ZC' against official manufacturer documentation to confirm availability and exact specifications, as datasheets may list variants such as 'ZB'. Ensure compliance with RoHS3 standards and MSL level 4 handling requirements during procurement and assembly processes.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a small form factor RGB indicator with a common anode structure. Consider the specific intensity levels and forward voltage drops when designing drive circuits. Verify that the 0404 package size fits within the available PCB real estate constraints.

LED Indication - Discrete Part Context

This part belongs to the Multi CHIPLED family from ams OSRAM, designed for high-density integration. These components combine multiple colors in a single package to reduce board space compared to discrete LEDs. The LRTBR48 series specifically targets applications needing compact RGB solutions with standardized mounting footprints.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Check for variants like LRTBR48G-P9Q7-1+R7S5-26+N5P-68-R33-ZB which share similar core specifications but may differ in packaging or suffix details.
