LRW0805FJ3R3GV001E

Fixed Inductors Overview

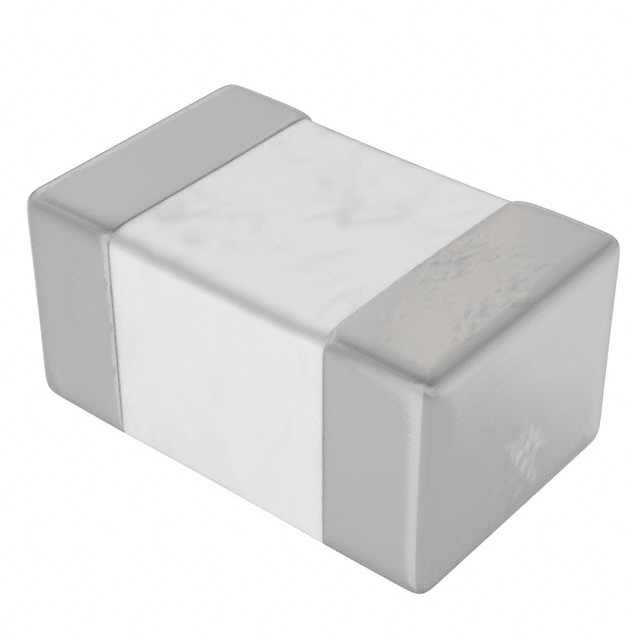

The LRW0805FJ3R3GV001E is a surface-mount radio frequency inductor manufactured by Johanson Technology Inc. It features an unshielded wirewound construction with a ferrite core, housed in an 0805 (2012 metric) package measuring 2.00 mm x 1.25 mm x 1.2 mm. The component provides an inductance of 3300 nH with a tolerance of ±5%. It supports a maximum current rating of 210 mA and operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Unshielded wirewound design utilizing a ferrite core for RF applications
• High Q-factor performance suitable for microwave and high-frequency circuits
• Compact 0805 surface-mount footprint for space-constrained PCB layouts

Fixed Inductors Applications

• RF matching networks
• Microwave circuit filtering
• High-frequency signal processing

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Johanson Technology documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with RoHS3 standards and check for any regional supply restrictions or allocation limits before ordering. Confirm package type matches the required 0805 form factor.

Fixed Inductors Selection Notes

Select this component for designs requiring precise 3300 nH inductance in an unshielded configuration. The ferrite core material offers distinct magnetic properties compared to ceramic alternatives. Evaluate the 210 mA current limit against peak circuit demands to ensure reliable operation without saturation or thermal issues in high-frequency environments.

Fixed Inductors Part Context

This inductor belongs to the LRW series of RF wirewound chip inductors from Johanson Technology. These components are engineered for stability in demanding RF environments. The 0805 size balances performance with board space efficiency, making it a standard choice for modern communication devices requiring reliable passive components.

Fixed Inductors Replacement Considerations

Cross-reference with other Johanson LRW series variants sharing the 0805 footprint and similar inductance values. Verify that substitute parts maintain the same ferrite core material and unshielded status to preserve circuit impedance characteristics.
