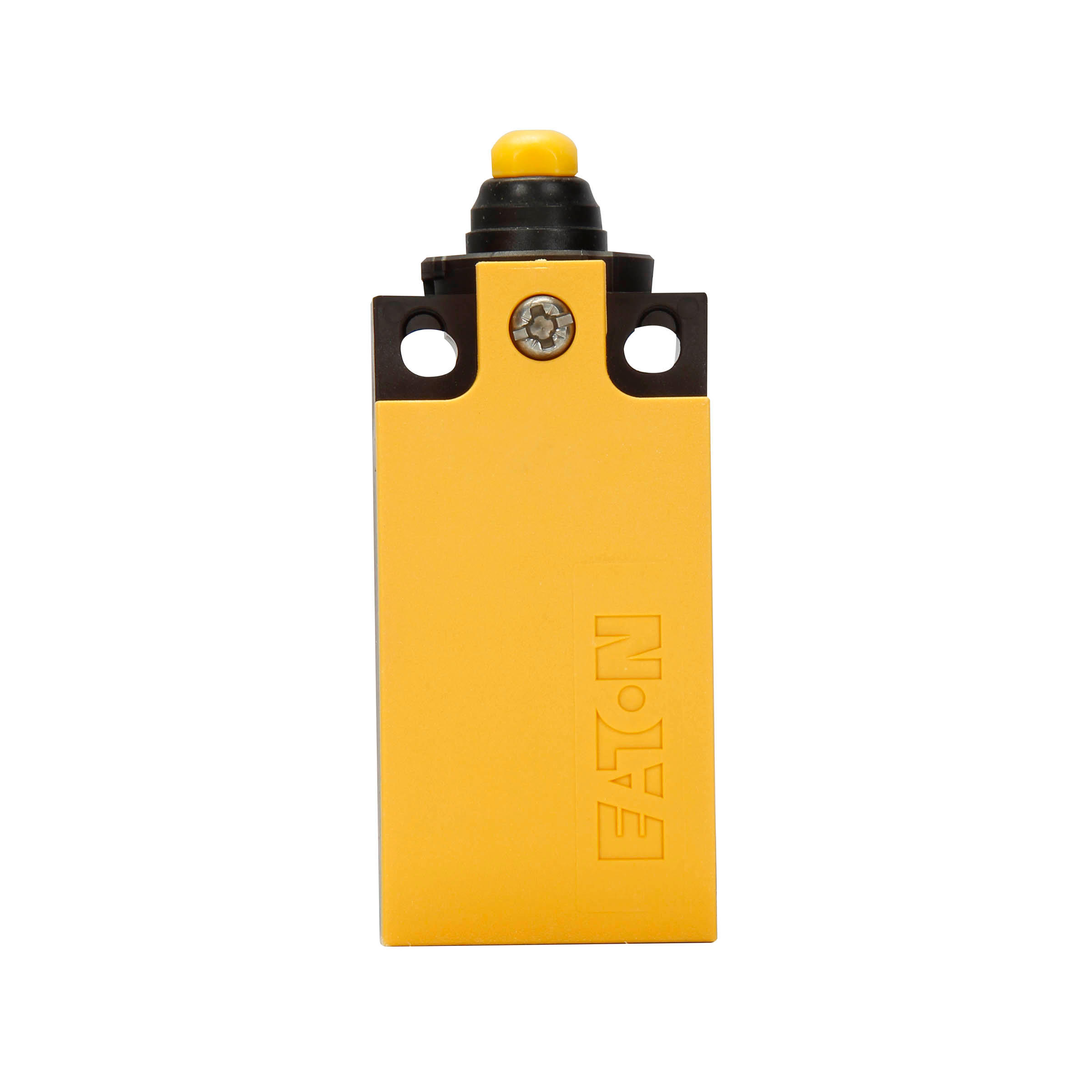

LS-11S

LS-11S is listed in the Limit Switches range at ChipApex. The manufacturer field lists Eaton Electrical. Its product description is IEC LIMIT SWITCH,PLASTIC,1NO/1NC. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for LS-11S

• Description：IEC LIMIT SWITCH,PLASTIC,1NO/1NC
• Series：LS-Titan
• Mfr：Eaton Electrical
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-On
• Current Rating (Amps)：6A (AC), 3A (DC)
• Voltage Rating - AC：240 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP66/IP67 - Dust Tight, Water Resistant, Waterproof
• Features：-
• Operating Force：-
• Release Force：-
• Operating Position：-
• Pretravel：-
• Differential Travel：-
• Overtravel：-
• Operating Temperature：-10°C ~ 70°C
• Voltage Rating - DC：24 V

Limit Switches datasheet and documents for LS-11S
