LS P47K-H1K2-1-0-2-R18F-Z

LED Indication - Discrete Overview

The LS P47K-H1K2-1-0-2-R18F-Z is a single-color Super Red LED from ams OSRAM, designed for discrete indication applications. It features a 630nm peak wavelength and emits red light with a luminous intensity of 11.2 mcd at a forward current of 2 mA. The component utilizes a standard configuration with flat leads in a 2-SMD package. It operates with a typical forward voltage of 1.8V and is rated for automotive-grade reliability under AEC-Q101 standards.

LED Indication - Discrete Feature Summary

• Automotive-grade reliability certified to AEC-Q101 standards
• Super Red emission at 630nm wavelength

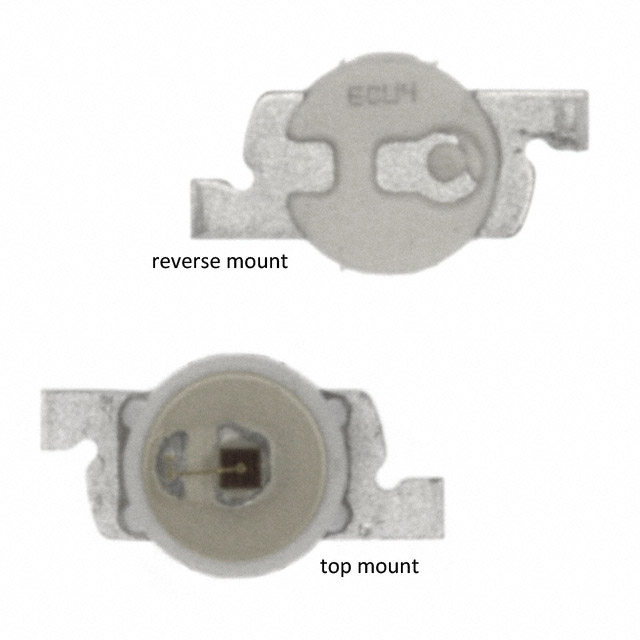

• Standard configuration with flat lead surface-mount design

LED Indication - Discrete Applications

• Discrete status indication in automotive electronics
• Panel indicator lights requiring red signaling
• General-purpose electronic device status display

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'R18F-Z' against official datasheets to confirm lens transparency and packaging details, as variations exist within the LS P47K family. Confirm end-of-life status and availability through authorized distributors, as supply conditions may vary by region and time.

LED Indication - Discrete Selection Notes

Select this component for applications requiring verified automotive-grade red LEDs with low forward voltage. Ensure the 2-SMD flat lead package fits the PCB footprint constraints. Compare luminous intensity requirements against the 11.2 mcd specification at 2 mA to ensure adequate visibility for the intended indication purpose.

LED Indication - Discrete Part Context

This part belongs to the LS P47K series of Super Red LEDs manufactured by ams OSRAM. The series is characterized by high reliability and compliance with automotive quality standards. It serves as a specialized solution for red indication needs where consistent color performance and durability are critical.

LED Indication - Discrete Replacement Considerations

The LS P47K-H1K2-1-0-2-R18-Z is a closely related variant within the same series. Verify mechanical compatibility and electrical parameters before substitution. Check for differences in lens transparency or packaging specifications between the R18F and R18 suffixes.
