LS03-1R8J-RC

Fixed Inductors Overview

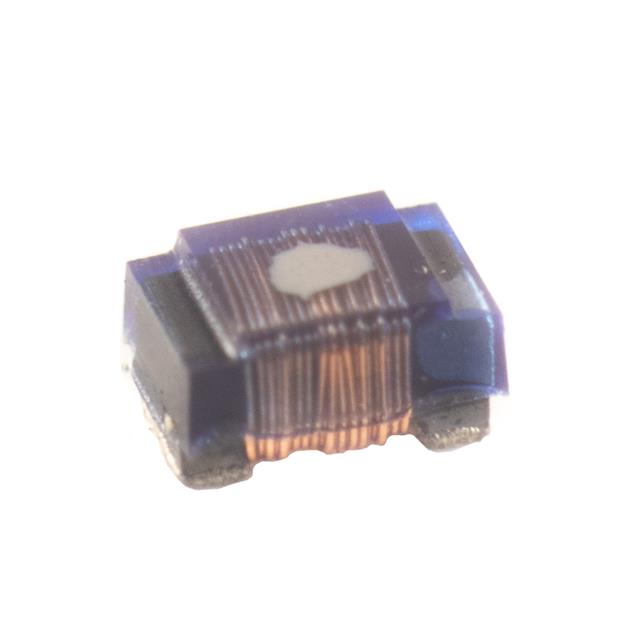

The LS03-1R8J-RC is a surface-mount power inductor manufactured by Allied Components International. It features a ferrite core and offers an inductance of 1.8 µH with a tolerance of ±5%. The component is designed for high-frequency applications, exhibiting a self-resonant frequency of 7.9 MHz. It supports RoHS compliance and lead-free manufacturing processes, ensuring environmental safety standards are met for modern electronic assemblies.

Fixed Inductors Feature Summary

• Utilizes a ferrite core structure for stable magnetic performance
• Designed for surface mount technology (SMT) integration
• Compliant with RoHS directives and lead-free manufacturing standards

Fixed Inductors Applications

• High-frequency signal processing circuits
• General-purpose power filtering applications
• Compact electronic device power management modules

Fixed Inductors Procurement Notes

Verify the specific datasheet version to confirm exact physical dimensions and thermal characteristics. Ensure that the ordering suffix matches the required packaging format. Cross-reference the manufacturer's latest documentation to validate current production status and any potential design changes before finalizing procurement plans.

Fixed Inductors Selection Notes

Select this component when a 1.8 µH inductance value is required for high-frequency operation near 7.9 MHz. Consider its surface-mount form factor for automated assembly processes. Evaluate the ±5% tolerance against circuit sensitivity requirements to ensure adequate performance margins within the target application environment.

Fixed Inductors Part Context

This part belongs to the LS03 series of chip inductors from Allied Components International. The series focuses on providing standard and custom magnetic components for various industries. The manufacturer specializes in designing these elements to meet specific industry standards while maintaining compact footprints suitable for dense PCB layouts.

Fixed Inductors Replacement Considerations

Consult official substitution lists for direct equivalents. Verify that alternative parts match the 1.8 µH nominal value and 7.9 MHz self-resonant frequency. Ensure physical compatibility and electrical parameters align with the original design specifications before implementation.
