LS05-8R2J-RC

Fixed Inductors Overview

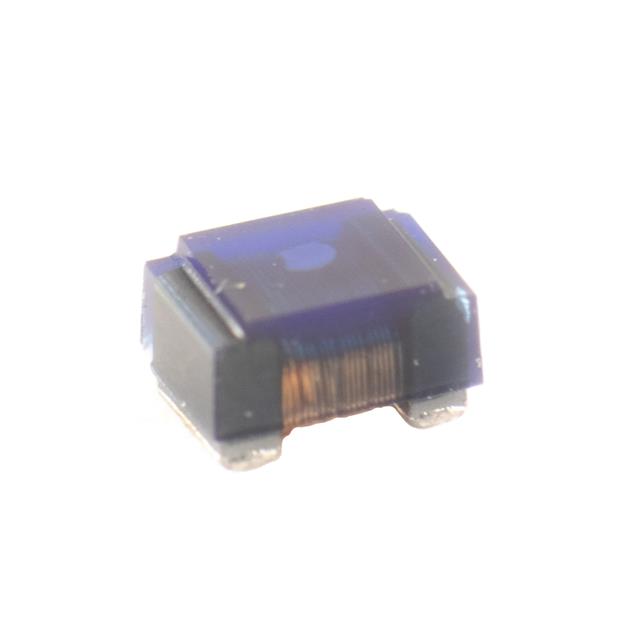

The LS05-8R2J-RC is a ferrite core chip inductor from Allied Components International, designed for surface mount applications. It features a rectangular shielded package with two terminals and operates within a temperature range of -40°C to +85°C. The component has a nominal inductance of 8.2 µH with a tolerance of ±5%, a maximum rated current of 3.5 A, and a DC resistance of 0.035 Ω. It complies with RoHS standards and is classified as EAR99.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Ferrite core material supports high-frequency operation
• Surface mount design facilitates automated assembly

Fixed Inductors Applications

• Power supply filtering circuits
• EMI suppression in high-frequency systems
• General purpose power inductor applications

Fixed Inductors Procurement Notes

Verify the specific ordering suffix matches the required inductance value and tolerance. Confirm that the package dimensions align with the PCB footprint requirements. Ensure compliance with environmental regulations such as RoHS and REACH is documented for the specific batch. Check manufacturer specifications for moisture sensitivity level and storage conditions prior to assembly.

Fixed Inductors Selection Notes

Select this component based on the required 8.2 µH inductance and 3.5 A current rating. Consider the shielded type for noise-sensitive environments. Verify the operating temperature range meets system demands. Compare physical dimensions against available board space. Ensure the DC resistance allows for acceptable voltage drop in the circuit design.

Fixed Inductors Part Context

This part belongs to the LS05 series of ferrite core chip inductors manufactured by Allied Components International. The series includes various inductance values tailored for different power and signal processing needs. These components are generally used in electronic devices requiring compact magnetic solutions for energy storage and filtering.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference guides for potential alternatives.
