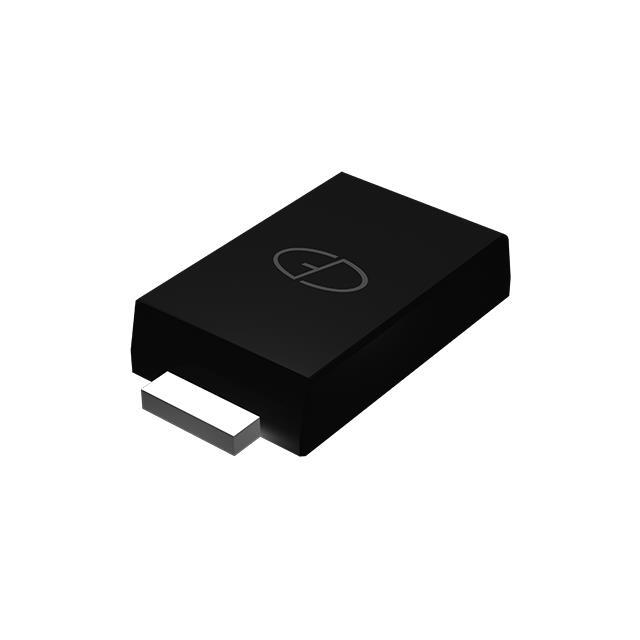

LS24

$0.19

Description：DIODE SCHOTTKY 40V 2A ESGB
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:832974968ac6 Category: Single Diodes Brand: Good-Ark Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LS24 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is DIODE SCHOTTKY 40V 2A ESGB. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for LS24

Description：DIODE SCHOTTKY 40V 2A ESGB
Series：-
Mfr：Good-Ark Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：40 V
Current - Average Rectified (Io)：2A
Voltage - Forward (Vf) (Max) @ If：550 mV @ 2 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：500 µA @ 40 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：DO-221AC, SMA Flat Leads
Supplier Device Package：eSGB (SMAF)
Operating Temperature - Junction：-55°C ~ 150°C
Grade：Automotive
Qualification：AEC-Q101

Single Diodes datasheet and documents for LS24

LS24

Single Diodes Overview

The LS24 is a surface mount Schottky rectifier from the LS22–LS2B series by Good-Ark Semiconductor. It features a maximum repetitive peak reverse voltage of 40 V and a maximum average forward rectified current of 2.0 A. The device exhibits a typical maximum instantaneous forward voltage of 0.55 V at 2 A and a typical junction capacitance of 20 pF at 4 V, 1 MHz. Operating temperatures range from -55 °C to +150 °C for both junction and storage conditions.

Single Diodes Feature Summary

Low forward voltage drop
Low leakage current
AEC-Q101 qualified

Single Diodes Applications

Low voltage inverters
Free wheeling applications
Polarity protection

Single Diodes Procurement Notes

Verify the specific part number against official datasheets to confirm electrical ratings and package type. Ensure compatibility with moisture sensitivity level 1 requirements per J-STD-020. Confirm soldering parameters align with the specified 260 °C dip limit for 10 seconds. Cross-reference thermal resistance values for your specific PCB copper pad dimensions.

Single Diodes Selection Notes

Select this component for circuits requiring low forward voltage drop and high efficiency in low voltage environments. The AEC-Q101 qualification makes it suitable for automotive applications. Consider the 2.0 A current rating and 40 V reverse voltage limits when designing power stages. Evaluate thermal management based on the junction-to-lead thermal resistance provided in the datasheet.

Single Diodes Part Context

This component belongs to the LS22 through LS2B family of surface mount Schottky rectifiers manufactured by Good-Ark Semiconductor. The series covers reverse voltages from 20 V to 100 V while maintaining a consistent 2.0 A forward current capability across all variants. These devices are designed for high-frequency switching applications where low loss and fast recovery are critical.

Single Diodes Replacement Considerations

Direct substitutes within the same series include LS22 (20V), LS23 (30V), LS25 (50V), LS26 (60V), LS27 (70V), LS28 (80V), LS29 (90V), and LS2B (100V). Ensure the replacement part meets or exceeds the required reverse voltage rating for the specific circuit application.
