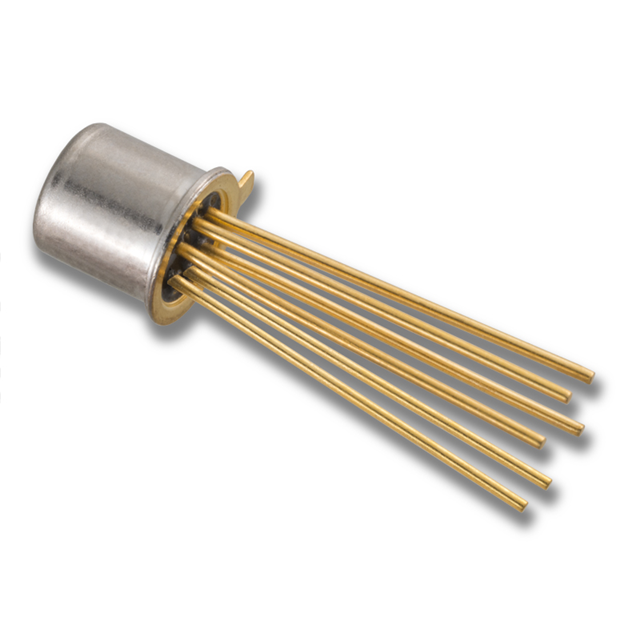

LS5911 TO-71 6L ROHS

$12.24

Description：JFET 2N-CH 25V TO71
Series：LS5911

SKU:e9edfc614627 Category: JFETs Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：JFET 2N-CH 25V TO71
Series：LS5911
Mfr：Linear Integrated Systems, Inc.
Package：Bulk
FET Type：2 N-Channel (Dual)
Voltage - Breakdown (V(BR)GSS)：25 V
Drain to Source Voltage (Vdss)：-
Current - Drain (Idss) @ Vds (Vgs=0)：7 mA @ 10 V
Current Drain (Id) - Max：-
Voltage - Cutoff (VGS off) @ Id：1 V @ 1 nA
Input Capacitance (Ciss) (Max) @ Vds：5pF @ 10V
Resistance - RDS(On)：-
Power - Max：500 mW
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Through Hole
Package / Case：TO-71-6 Metal Can
Supplier Device Package：TO-71
Grade：-
Qualification：-

Download product information

LS5911 TO-71 6L ROHS

Overview

The LS5911 is a low noise wideband monolithic dual N-channel JFET amplifier designed as an improved replacement for legacy discrete devices. It features high transconductance and low input noise voltage, making it suitable for precision analog applications. The device is housed in a TO-71 metal can package with six leads.

Feature Summary

Low noise performance at 10kHz
High transconductance at 100MHz
Monolithic dual N-channel JFET configuration

Applications

Precision analog signal processing
Wideband amplification circuits
Low noise front-end stages

Procurement Notes

Verify the specific package type matches the required footprint, as the datasheet lists multiple options including SOT-23, SOIC, and PDIP variants alongside the TO-71. Confirm that the ordering suffix corresponds to the desired lead finish and packaging format before finalizing procurement.

Selection Notes

Select this component when a matched dual JFET pair with low noise characteristics is required. Ensure the operating junction temperature remains within the specified range and that power dissipation limits are respected under thermal derating conditions.

Part Context

Linear Integrated Systems manufactures the LS5911 as part of a family including LS5912 and LS5912C. These components serve as modern replacements for older discrete JFETs like the 2N5911 and 2N5912, offering integrated matching and consistent electrical characteristics.
