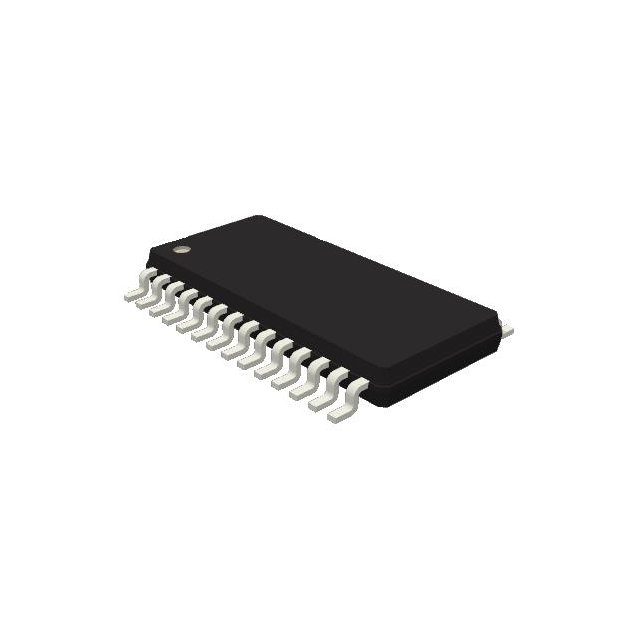

LS7560F-TS

Description：BLDC MOTOR CONTROLLER
Series：-
Mfr：LSI/CSI
Package：Tube

SKU:d6ca56c93b55 Category: Motor Drivers, Controllers Brand: LSI/CSI

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BLDC MOTOR CONTROLLER
Series：-
Mfr：LSI/CSI
Package：Tube
Motor Type - Stepper：Multiphase
Motor Type - AC, DC：Brushless DC (BLDC)
Function：Controller - Commutation, Direction Management
Output Configuration：Half Bridge (3)
Interface：PWM
Technology：Power MOSFET
Step Resolution：-
Applications：General Purpose
Current - Output：30mA
Voltage - Supply：5.7V ~ 6.3V
Voltage - Load：-
Operating Temperature：-25°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package：28-TSSOP
Grade：-
Qualification：-

Download product information

LS7560F-TS

Overview

The LS7560F-TS is a multiphase motor driver controller designed for brushless DC (BLDC) and stepper motors. It operates within a supply voltage range of 5.7V to 6.3V. The device features three half-bridge outputs and supports both closed-loop and open-loop configurations. It integrates commutation logic and direction management functions. The component is housed in a 28-TSSOP package with a width of 4.40mm.

Feature Summary

Integrated commutation and direction management for multiphase motors
Supports closed-loop and open-loop control configurations
Three half-bridge output configuration

Applications

Brushless DC motor control systems
Multiphase stepper motor drives
High-power motor control cabinets

Procurement Notes

Verify the manufacturer designation LSI/CSI against official datasheets. Confirm the 28-TSSOP package type and pinout compatibility with your PCB layout. Ensure the operating voltage requirements align with your system's 5.7V to 6.3V supply range before procurement.

Selection Notes

Select this component for applications requiring integrated commutation for BLDC or multiphase stepper motors. It is suitable for systems needing direction management without external logic. Verify thermal performance requirements as it is installed in high-power motor control cabinets.

Part Context

The LS7560F-TS belongs to the LS7560F/LS7561F family from LSI/CSI. These ICs are specifically engineered for controlling three or four phase brushless DC motors. The series provides a complete solution for motor drive applications by combining decoding, commutation, and power output stages.

Replacement Considerations

Consult official LSI/CSI documentation for direct substitutes. Cross-reference pinouts and electrical specifications carefully when considering alternative motor controllers.
