LSDND2020KKT100MM

$0.31

Description：FIXED IND 10UH 630MA 690MOHM SMD
Series：LSDN
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:862d97e2ae59 Category: Fixed Inductors Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LSDND2020KKT100MM is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 10UH 630MA 690MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LSDND2020KKT100MM

Description：FIXED IND 10UH 630MA 690MOHM SMD
Series：LSDN
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Metal
Inductance：10 µH
Tolerance：±20%
Current Rating (Amps)：630 mA
Current - Saturation (Isat)：750mA
Shielding：Shielded
DC Resistance (DCR)：690mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：1 MHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for LSDND2020KKT100MM

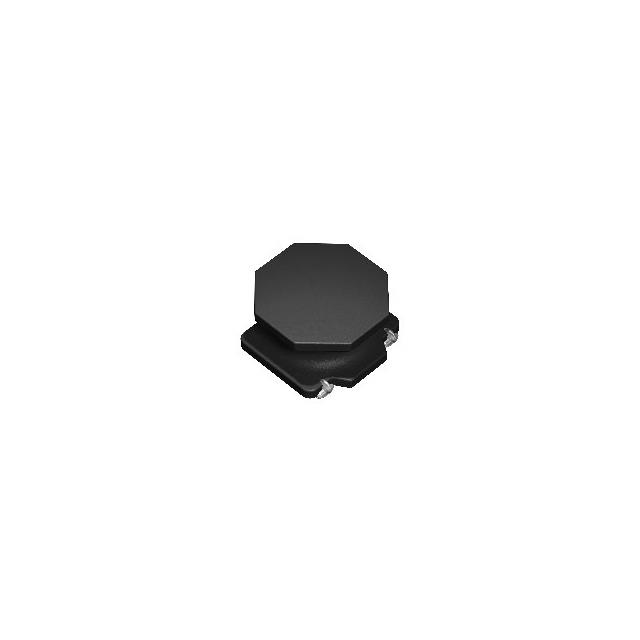

LSDND2020KKT100MM

Fixed Inductors Overview

The LSDND200KKT100MM is a shielded wirewound power inductor from the MCOIL LSDN series, manufactured by Taiyo Yuden. It features a 10 µH nominal inductance with a ±20% tolerance. The component operates within a temperature range of -40°C to +125°C and utilizes a metal core construction. Key electrical parameters include a maximum DC resistance of 690 mΩ, a rated current of 630 mA, and a saturation current of 750 mA. The device is designed for surface mount applications in general electronic equipment.

Fixed Inductors Feature Summary

Shielded wirewound construction utilizing a metal core for magnetic containment
Designed for high-current performance in compact surface mount footprints
Operates reliably across an extended industrial temperature range

Fixed Inductors Applications

General electronic equipment power circuits
DC-DC converter output filtering
Power supply input chokes

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct packaging and tape specifications. Confirm that the requested part number matches the exact inductance value and current ratings required for the target application circuit. Cross-reference the RoHS compliance status with current environmental regulations before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with a 2.0 mm x 2.0 mm footprint is required for space-constrained designs. Ensure the application current does not exceed the 630 mA rated current or 750 mA saturation current limits. Consider the 690 mΩ DC resistance impact on overall efficiency during thermal analysis.

Fixed Inductors Part Context

This part belongs to the MCOIL LSDN series, which specializes in compact, shielded power inductors. The series is engineered for general-purpose electronics, offering a balance between size reduction and current handling capabilities compared to unshielded alternatives.
