LSXBD5050YAL2R2N

Fixed Inductors Overview

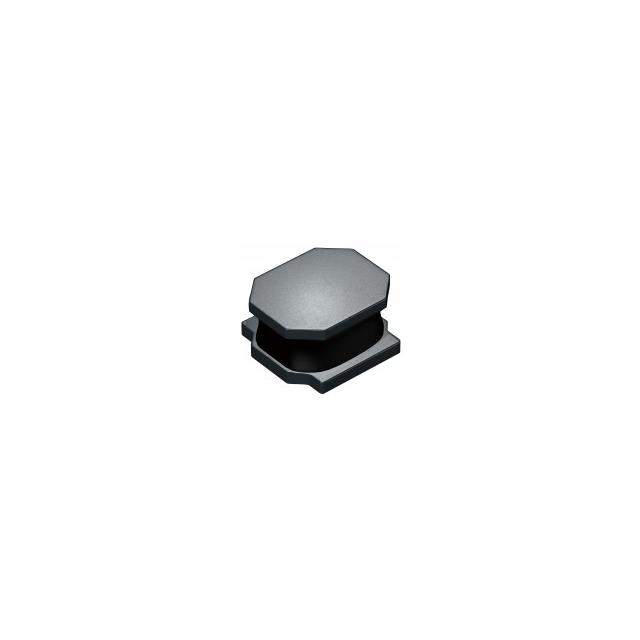

The LSXBD5050YAL2R2N is a surface-mount power inductor from Taiyo Yuden, designed for high-current applications. It features a 2.2 uH nominal inductance with a 30% tolerance. The component utilizes a ferrite core and wirewound construction within a 5050 metric package (4.9 mm x 4.9 mm x 4.1 mm). Key electrical specifications include a maximum DC resistance of 28.6 mOhms, a saturation current of 3.5 A at a temperature rise of 40°C, and a self-resilient frequency of 42 MHz. It operates reliably between -25°C and +120°C.

Fixed Inductors Feature Summary

• Semi-shielded design to minimize electromagnetic interference
• High saturation current capability for efficient power delivery
• Low profile form factor suitable for space-constrained PCB layouts

Fixed Inductors Applications

• Telecommunications infrastructure equipment
• Industrial power supply systems
• General-purpose power electronics circuits

Fixed Inductors Procurement Notes

Verify the specific ordering suffix and RoHS compliance status directly with the manufacturer or authorized distributors before purchase. Confirm that the requested quantity matches available packaging options such as cut tape or reels. Ensure the procurement channel provides valid traceability documentation to guarantee component authenticity and quality standards are met for industrial use cases.

Fixed Inductors Selection Notes

Select this component when a compact 5050 footprint is required alongside high current handling capabilities. The semi-shielded structure offers a balance between magnetic field containment and cost efficiency. Engineers should verify that the 28.6 mOhm DCR meets the voltage drop requirements of their specific circuit design while ensuring the thermal operating range aligns with the system environment.

Fixed Inductors Part Context

This part belongs to the LSXBD series of power inductors, which are engineered for robust performance in demanding electronic environments. The series emphasizes durability and consistent electrical characteristics under varying load conditions. As a specialized SMD component, it supports modern automated assembly processes while providing reliable inductive filtering and energy storage functions in power conversion stages.

Fixed Inductors Replacement Considerations

LSXND5050YAL2R2NMG is listed as a suggested alternate part number by distributors.
