LSXND5050PKT1R2NMG

Fixed Inductors Overview

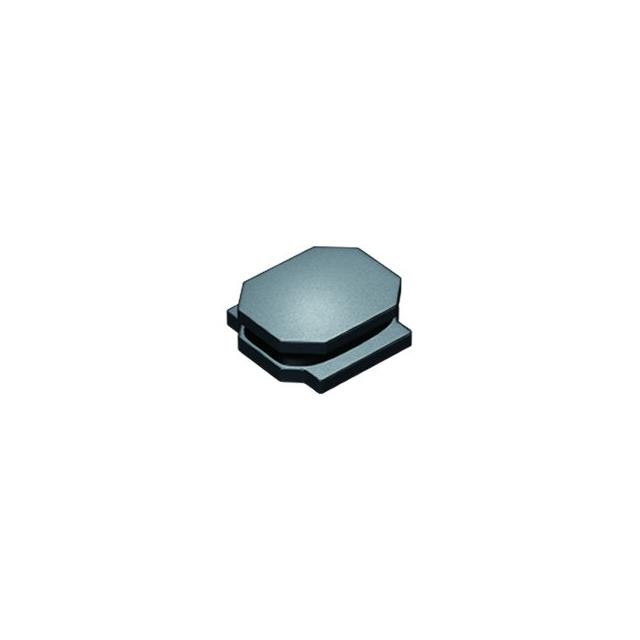

The LSXND5050PKT1R2NMG is a surface-mount power inductor from Taiyo Yuden, designed for general-purpose applications. It features a ferrite core and wirewound construction within a 5050 metric package measuring 5 mm by 5 mm with a height of 1.2 mm. The component provides an inductance of 1.2 uH with a tolerance of 30%. It supports a maximum DC current of 2.4 A and has a saturation current rating of unspecified but implied high-current capability relative to its size. The DC resistance is low, ensuring efficient power delivery. Operating temperatures range from -25 C to +125 C.

Fixed Inductors Feature Summary

• Semi-shielded design reduces electromagnetic interference while maintaining compact form factor.
• Ferrite core and wirewound structure provide stable inductance characteristics.
• Optimized for high DC current handling suitable for power supply circuits.

Fixed Inductors Applications

• General-purpose power supply circuits
• DC-DC converter input/output filtering
• Telecommunications infrastructure equipment

Fixed Inductors Procurement Notes

Verify the specific suffix 'NMG' against official Taiyo Yuden documentation to confirm tape and reel specifications or RoHS compliance status. Ensure the ordering part number matches the exact electrical parameters required for the target application. Cross-reference with authorized distributors to confirm availability and lead times based on current production schedules.

Fixed Inductors Selection Notes

Select this component when a 1.2 uH inductance value is required in a 5050 footprint. Consider the 2.4 A DC current rating and 30% tolerance for circuit stability. Evaluate thermal performance within the -25 C to +125 C operating range. Compare against semi-shielded alternatives if magnetic field containment is critical for nearby sensitive components.

Fixed Inductors Part Context

This part belongs to the LSXN series of fixed power inductors by Taiyo Yuden. The series focuses on SMD solutions for general electronic equipment. The 5050 package size balances current capacity with board space constraints. It complements other series like LBXN and LLXN which offer different current or shielding profiles.

Fixed Inductors Replacement Considerations

LSXND5050YKL150MMG offers similar shielding and package dimensions with different inductance values. NRS5040T150MMGJ provides a comparable alternative in a slightly different footprint. Verify pin compatibility and electrical parameter overlap before substitution.
