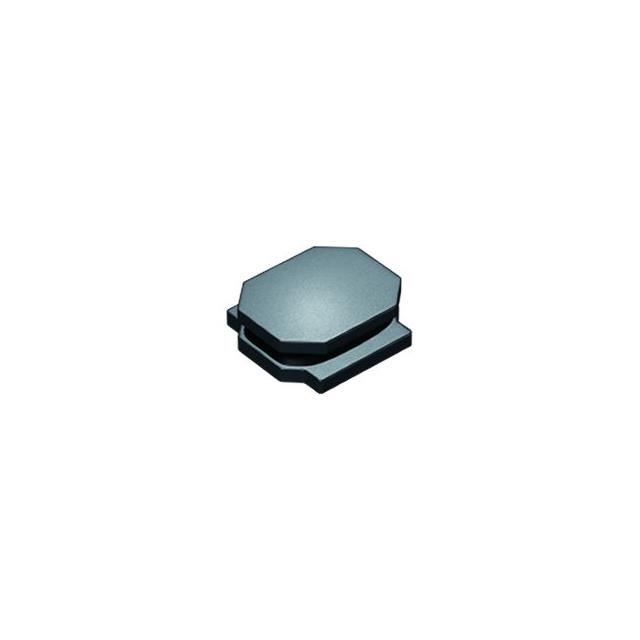

LSXNE2424MKT2R2MNG

$0.16

Description：FIXED IND 2.2UH 1A 140 MOHM SMD
Series：LSXN
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c6727804c4d1 Category: Fixed Inductors Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LSXNE2424MKT2R2MNG is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 2.2UH 1A 140 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LSXNE2424MKT2R2MNG

Description：FIXED IND 2.2UH 1A 140 MOHM SMD
Series：LSXN
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：Ferrite
Inductance：2.2 µH
Tolerance：±20%
Current Rating (Amps)：1:00 AM
Current - Saturation (Isat)：1.7A
Shielding：Shielded
DC Resistance (DCR)：168mOhm Max
Q @ Freq：-
Frequency - Self Resonant：72MHz
Ratings：-
Operating Temperature：-25°C ~ 120°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.094" L x 0.094" W (2.40mm x 2.40mm)
Height - Seated (Max)：0.047" (1.20mm)
Features：-

Fixed Inductors datasheet and documents for LSXNE2424MKT2R2MNG

LSXNE2424MKT2R2MNG

Fixed Inductors Overview

The LSXNE2424MKT2R2MNG is a surface-mount power inductor from Taiyo Yuden, belonging to the LSXN series. It features a semi-shielded wirewound construction with a ferrite core, housed in a 2424 metric package measuring 2.4 mm by 2.4 mm. The component provides an inductance of 2.2 μH with a tolerance of 20%. It supports PCB mounting and operates within a temperature range of -25°C to +125°C. The maximum DC resistance is specified at 168 mΩ.

Fixed Inductors Feature Summary

Semi-shielded design reduces electromagnetic interference
Wirewound ferrite core for stable performance
Compact 2424 metric footprint

Fixed Inductors Applications

DC-DC converter circuits
Power supply filtering
General electronic equipment power stages

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Taiyo Yuden documentation to ensure accuracy. Confirm that the requested component matches the LSXN series specifications and physical dimensions. Cross-reference technical parameters such as inductance and resistance values with current datasheets before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a compact 2424 size is required for power applications. Ensure the circuit design accommodates the 2.2 μH inductance value and the 168 mΩ DC resistance limit. Verify that the operating temperature requirements fall within the -25°C to +125°C range defined for this series.

Fixed Inductors Part Context

This component is part of the LSXN series of power inductors manufactured by Taiyo Yuden. The series offers a wide inductance range from 470 nH to 220 μH. These components are designed for surface-mount technology and utilize a semi-shielded structure to minimize magnetic flux leakage in dense circuit layouts.
