LSXNH8080YKL151MJG

Fixed Inductors Overview

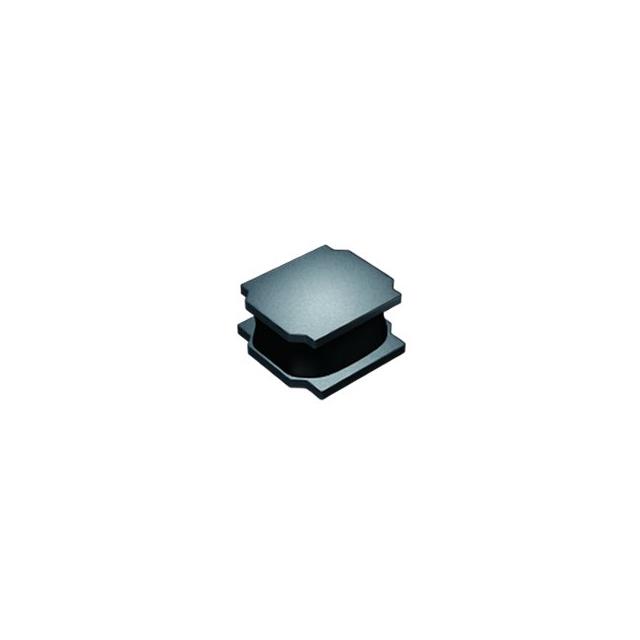

The LSXNH8080YKL151MJG is a semi-shielded wirewound power inductor from the LSXN series, manufactured by Taiyo Yuden. It features an 8080 metric package (3131 imperial) with dimensions of 8 mm length and 8 mm width. The component provides an inductance of 150 µH with a tolerance of ±20%. It supports a maximum DC current of 800 mA and a saturation current of 980 mA. The DC resistance ranges from 420 to 546 mΩ. Operating temperatures span from -25°C to +125°C.

Fixed Inductors Feature Summary

• Semi-shielded construction minimizes magnetic flux interference
• Wirewound core design ensures stable performance under load
• Compact 8080 metric footprint suitable for space-constrained layouts

Fixed Inductors Applications

• DC/DC converter circuits
• Power supply filtering stages
• Telecommunication equipment power modules

Fixed Inductors Procurement Notes

Verify the specific ordering suffix against official Taiyo Yuden documentation to confirm packaging type and tape specifications. Ensure the selected variant matches the required lead time and reel configuration for automated assembly processes. Cross-reference the manufacturer part number with distributor catalogs to validate availability and authenticity before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component based on the required 150 µH inductance value and the 8080 package size constraints. Evaluate the 800 mA continuous current rating against the application's steady-state load requirements. Consider the semi-shielded design if magnetic sensitivity exists nearby. Confirm that the operating temperature range meets the environmental conditions of the target system.

Fixed Inductors Part Context

This part belongs to the LSXN series of surface-mount power inductors designed for high-density electronic applications. The series utilizes wirewound technology to provide reliable inductance values in compact packages. These components are engineered for use in modern power management solutions where space efficiency and thermal stability are critical design factors.

Fixed Inductors Replacement Considerations

Consult official substitution lists for direct equivalents. Verify pin compatibility and electrical parameters such as inductance, current ratings, and physical dimensions when considering alternative manufacturers or series replacements.
