LT Y1SG-BACB-35-1-20-R18-Z

LED Indication - Discrete Overview

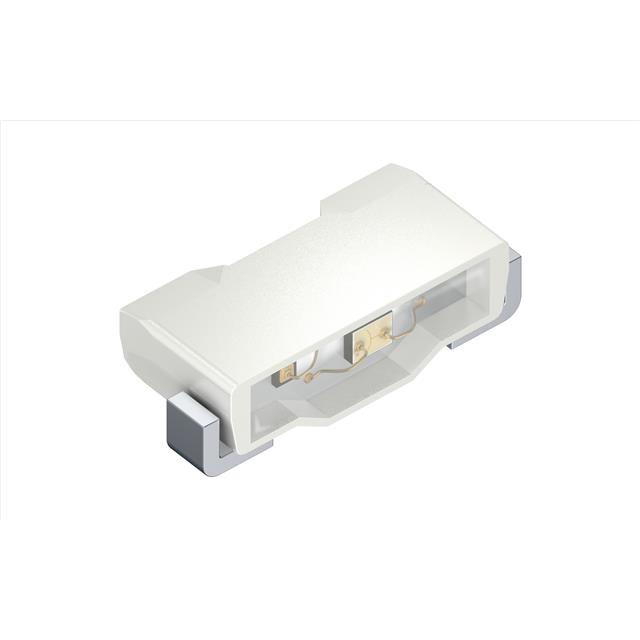

The LT Y1SG-BACB-35-1-20-R18-Z is a single-color green LED from the LT Y1SG series by ams OSRAM. It features a rectangular lens and operates at a peak wavelength of 528 nm. The component utilizes a surface-mount flat lead package design suitable for SMD/SMT installation. Key electrical parameters include a forward voltage of 3.2 V and a rated power dissipation of 57 mW. The device supports a maximum forward current of 30 mA, ensuring reliable performance for discrete indication applications in electronic circuits.

LED Indication - Discrete Feature Summary

• Provides distinct green light emission with a 528 nm peak wavelength
• Features a rectangular lens shape for directional light output
• Utilizes a compact two-terminal surface-mount flat lead package
• Designed for low-power discrete visual indication tasks

LED Indication - Discrete Applications

• Discrete status indication in electronic devices
• Panel indicator lights for consumer electronics
• Visual signaling in industrial control equipment

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against official ams OSRAM documentation to confirm binning and packaging details. Ensure compatibility with standard surface-mount reflow soldering profiles. Confirm that the 528 nm spectral class meets the required optical specifications for the intended application environment before finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a green indication signal is required within a limited power budget. The 30 mA forward current rating allows for efficient operation without excessive heat generation. Consider the rectangular lens geometry for beam shaping requirements. Verify that the 3.2 V forward voltage aligns with the available drive voltage levels in the target circuit design.

LED Indication - Discrete Part Context

This part belongs to the LT Y1SG series of single-color LEDs manufactured by ams OSRAM. The series offers various color options and package configurations for general-purpose indication. The LT Y1SG variant specifically targets applications requiring a compact footprint and reliable green light emission for visual feedback in modern electronic assemblies.

LED Indication - Discrete Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify matching wavelength, forward voltage, and package dimensions when evaluating alternative components. Ensure any replacement maintains the same thermal and electrical characteristics to preserve circuit functionality.
