Product Detailed Parameters

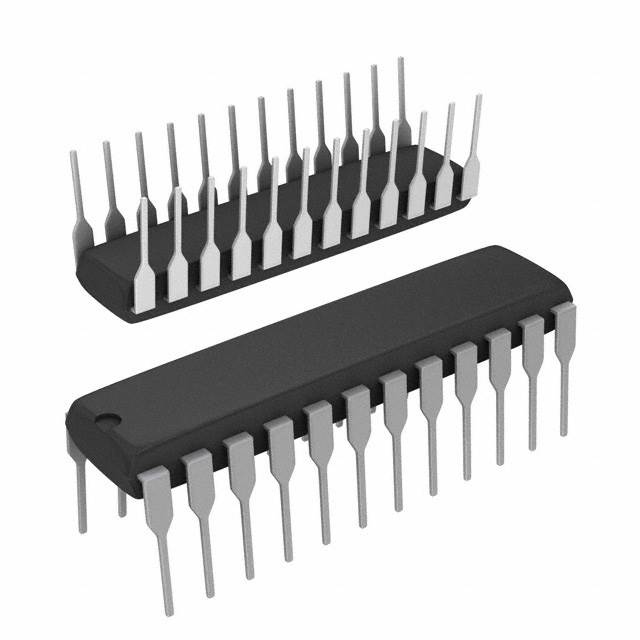

- Description：IC GATE DRVR HALF-BRIDGE 24DIP
- Series：-
- Mfr：Analog Devices Inc.
- Package：Tube
- Driven Configuration：Half-Bridge
- Channel Type：Independent
- Number of Drivers：4
- Gate Type：MOSFET (N-Channel)
- Voltage - Supply：10V ~ 15V
- Logic Voltage - VIL, VIH：0.8V, 2V
- Current - Peak Output (Source, Sink)：1.5A, 1.5A
- Input Type：Non-Inverting
- Rise / Fall Time (Typ)：130ns, 60ns
- Operating Temperature：0°C ~ 125°C (TJ)
- Mounting Type：Through Hole
- Package / Case：24-DIP (0.300", 7.62mm)
- Supplier Device Package：24-PDIP
- Grade：-
- Qualification：-
- High Side Voltage - Max (Bootstrap)：60 V
Download product information
Overview
The LT1162CN is a high-speed interface circuit manufactured by Analog Devices Inc., classified under analog mixed-signal IC drivers and interfaces. It functions as a cost-effective half-bridge or full-bridge N-channel power MOSFET driver. The component is designed for efficient gate driving applications, supporting robust switching performance in power electronics systems.
Feature Summary
- Provides high-speed interface capabilities for power management circuits
- Optimized for driving N-channel power MOSFETs in bridge configurations
- Delivers cost-effective solutions for half-bridge and full-bridge topologies
Applications
- Half-bridge N-channel power MOSFET driver circuits
- Full-bridge N-channel power MOSFET driver circuits
- General-purpose interface circuit applications requiring fast switching
Procurement Notes
Verify the specific part number suffix against official Analog Devices documentation to confirm package type and temperature range compliance. Ensure the procurement channel provides valid traceability for the LT1162CN series. Cross-reference the manufacturer's latest datasheet to confirm RoHS status and availability constraints prior to ordering.
Selection Notes
Select the LT1162CN when designing N-channel MOSFET drive stages requiring balanced rise and fall times. Consider its suitability for bridge topologies where cost efficiency and speed are critical. Evaluate thermal requirements and ensure the PDIP package fits the target PCB layout constraints compared to surface-mount alternatives.
Part Context
The LT1162CN belongs to the LT1162 family of interface circuits from Analog Devices. It shares functional similarities with variants such as LT1162CS, LT1162IS, and LT1162IN, differing primarily in package style and temperature rating. These components collectively serve as standard drivers for power switching applications.
Replacement Considerations
LT1162CS, LT1162IS, and LT1162IN are documented related components within the same product family. Verify pin compatibility and electrical specifications before substituting.
